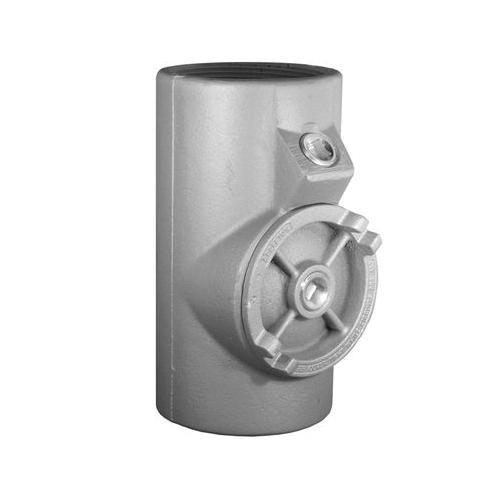

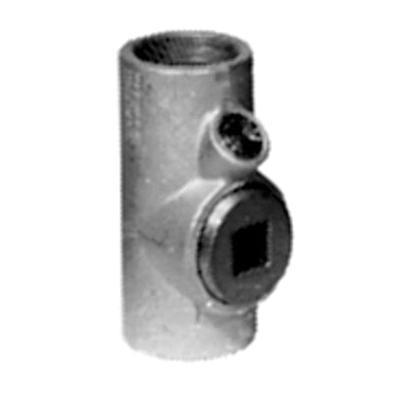

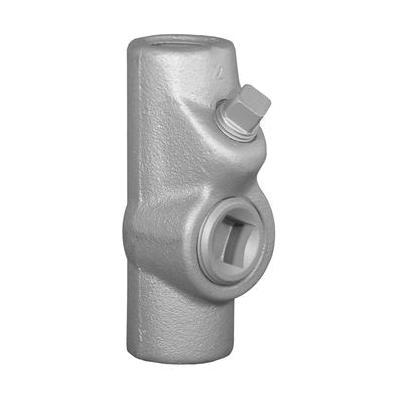

Appleton™ Conduit Sealing Fitting, Series: EYS Series, 2 in Hub, Female, Orientation: Horizontal, Vertical, 58.6 in Turning Radius, Grayloy® Iron, Chromate/Epoxy Powder-Coated/Zinc Electro-Plated, For Use With: Threaded Rigid Metal Conduit and IMC, 3 in Length
| Finish | : | Chromate/Epoxy Powder-Coated/Zinc Electro-Plated |
| Hub Size | : | 2 in |
| Hub Type | : | Female |
| Length | : | 3 in |
| Material | : | Grayloy® Iron |
| Orientation | : | Horizontal, Vertical |
| Series | : | EYS Series |
| Suitable For Use With | : | Threaded Rigid Metal Conduit and IMC |
| Turning Radius | : | 58.6 in |
- Explosion-proof, dust ignition-proof, raintight
- Prevent passage of gases, vapors or flames from one portion of conduit system to another
- Restrict any explosion to the sealed off enclosure. Prevent pressure piling within conduit system
- Required in class I, division 1 and 2 locations within 18 ft of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in class I, division 1 and 2 locations where 2 ft or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in class I, division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in class I, division 1 and 2 locations where two or more enclosures are connected by 36 ft or less conduit, seal must be located within 18 ft of either enclosure
- Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in class I, division 2 locations
- Smooth, rounded Integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity

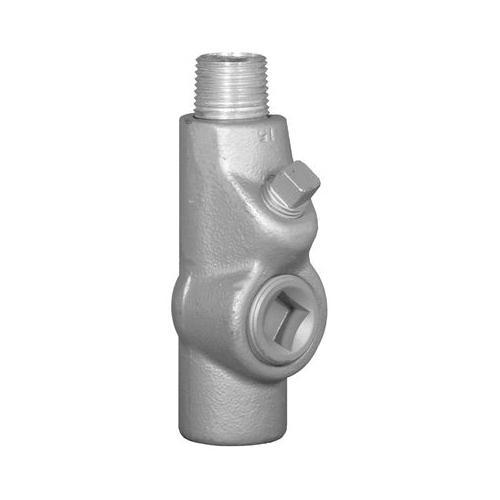

- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- Large opening for damming and filling
