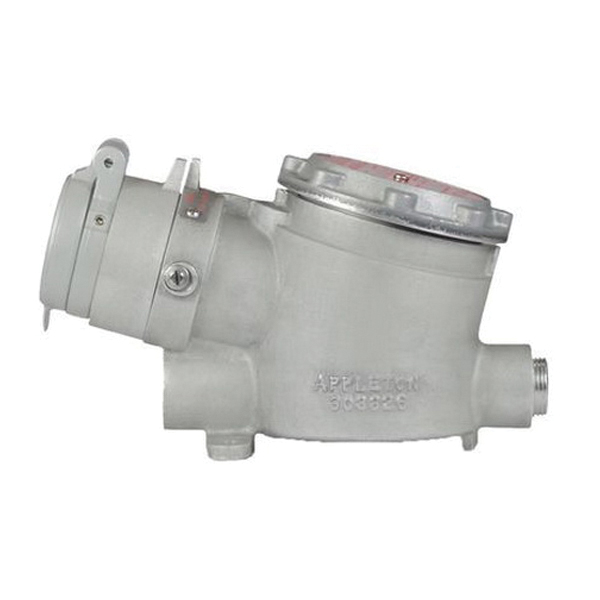

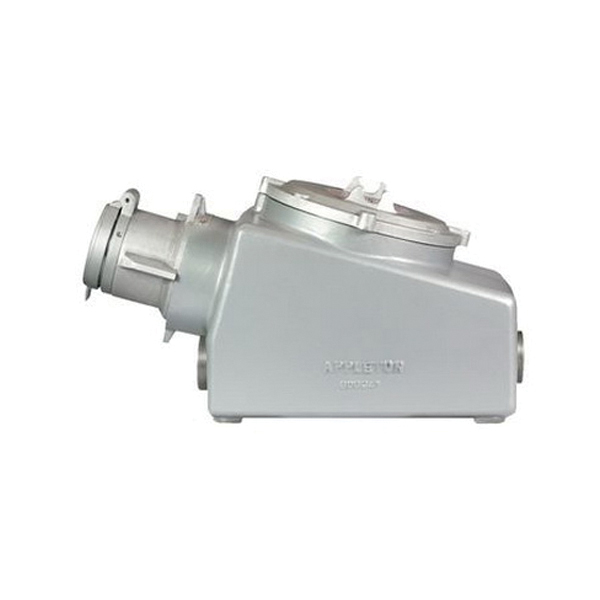

Appleton™ Clamp Ring Plug, 120 to 600 VAC, 100 A, 4 Pole, 3 Wires, 3 ph, 0.875 to 1.906 in Cable Dia, 2 to 1 AWG Wire, 3R, 4, 4X, 7CD, 9FG, NEMA 3, Grounding Grounding Type, Aluminum Body, 10-1/2 in Length, 4 in Width, Additional Information: 3/4 to 1 in Hub Size, Feed-Thru Mounting Box Entry
| Additional Information | : | 3/4 to 1 in Hub Size, Feed-Thru Mounting Box Entry |
| Amperage Rating | : | 100 A |
| Body Material | : | Aluminum |
| Cable Diameter | : | 0.875 to 1.906 in |
| Grounding Type | : | Grounding |
| Length | : | 10-1/2 in |
| NEMA Rating | : | 3R, 4, 4X, 7CD, 9FG, NEMA 3 |
| Number of Poles | : | 4 |
| Number of Wires | : | 3 |
| Phase | : | 3 ph |
| Voltage Rating | : | 120 to 600 VAC |
| Width | : | 4 in |
| Wire Size | : | 2 to 1 AWG |
- Interlocked disconnect switch provides safe connect and disconnect operation at 30, 60 or 100 A, 600 VAC maximum, three-pole, non-fused motor circuit switch
- To operate, insert the plug and turn receptacle collar to the on position
- To remove the plug, turn the plug to the off position and pull the plug out
- Style two grounding
- Spring door keeps dust out of receptacle when plug is not in use
- Screw cover also supplied free of charge for NEMA 4 applications
- Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Contacts have beryllium copper wire springs
- Tapped NPT conduit openings at top and bottom 30 A 3/4 #8221, 60 A 1-1/2 #8221, 100 A 2 #8221
- Large housing provides ample wiring room
- Powertite™ Series plug fits hazardous location FSQC receptacles
