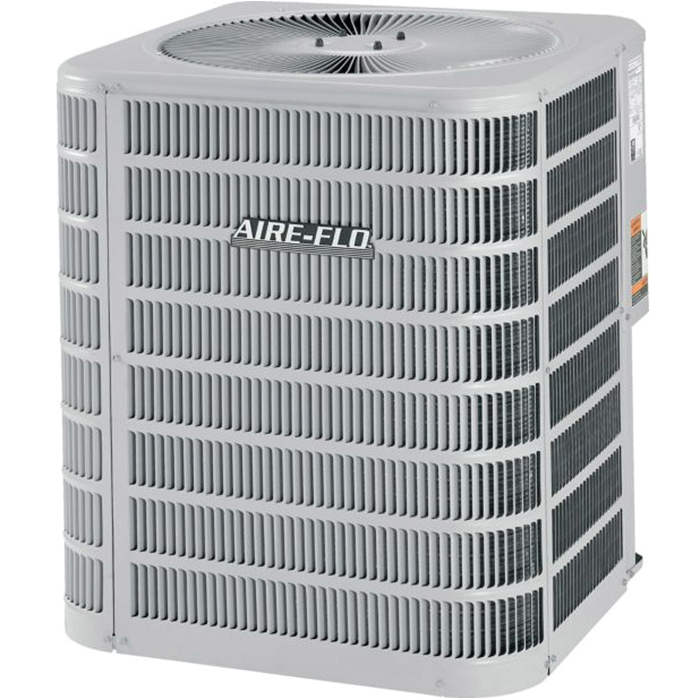

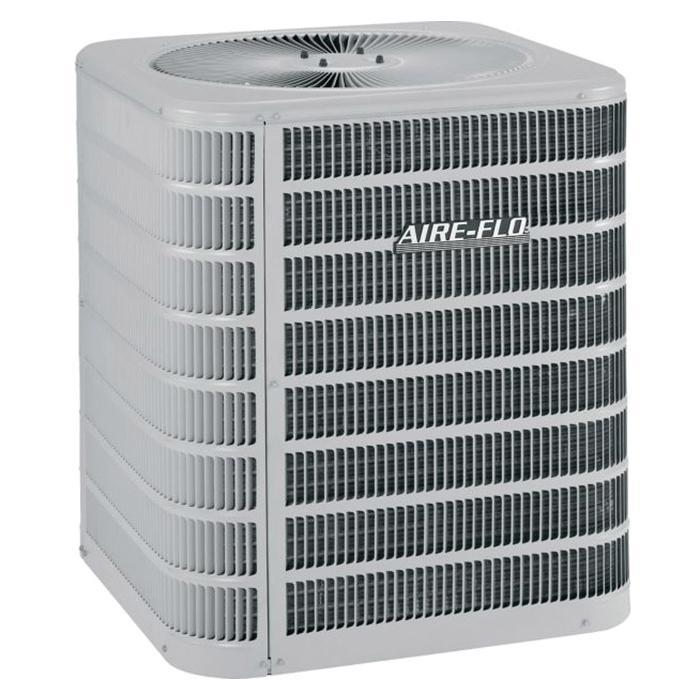

Aire-Flo® Heat Pump, 4HP14L Series, 208/230 V, 29.4 A, 1/3 hp, 60 Hz, 1 ph Phase, 825 rpm Rotational Speed, 60000 Btu/hr, 12 EER Rating, 14 SEER, 8.2 HSPF, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 50 A Fuse Rating, Tonnage: 5 ton, 80 dBA Sound Level, 1 Stages, 43 in H x 32-1/4 in W x 32-1/4 in D, Additional Information: Vertical Configuration
| Additional Information | : | Vertical Configuration |
| Amperage Rating | : | 29.4 A |
| BTU Rating | : | 60000 Btu/hr |
| Compressor Type | : | Scroll |
| Dimensions | : | 43 in H x 32-1/4 in W x 32-1/4 in D |
| EER Rating | : | 12 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 50 A |
| HP Rating | : | 1/3 hp |
| HSPF Rating | : | 8.2 |
| Liquid Line Size | : | 3/8 in |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 825 rpm |
| SEER Rating | : | 14 |
| Series | : | 4HP14L Series |
| Sound Level | : | 80 dBA |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5 ton |
| Voltage Rating | : | 208/230 V |
- Compressors with internal pressure relief valves and inherent thermal protection
- High quality outdoor coils constructed of copper tubes with enhanced louvered fins for maximum heat transfer capability
- Louvered cabinet protects coil from fin damage
- Vertical air discharge sends hot air up and away from home and shrubbery
- Permanently lubricated outdoor fan motor needs no annual maintenance
- Easy-access to electrical panel, pre-wired for easy hook-up
- Integrated control with short cycle, defrost control and LED diagnostics
- 45 deg service valves for easy hook-up and service
- Liquid line filter drier furnished for field installation
Specification Sheet
