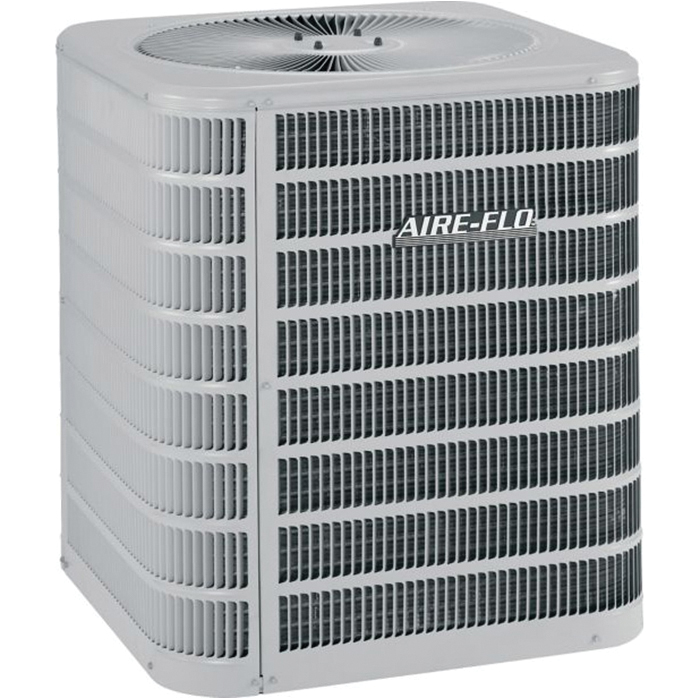

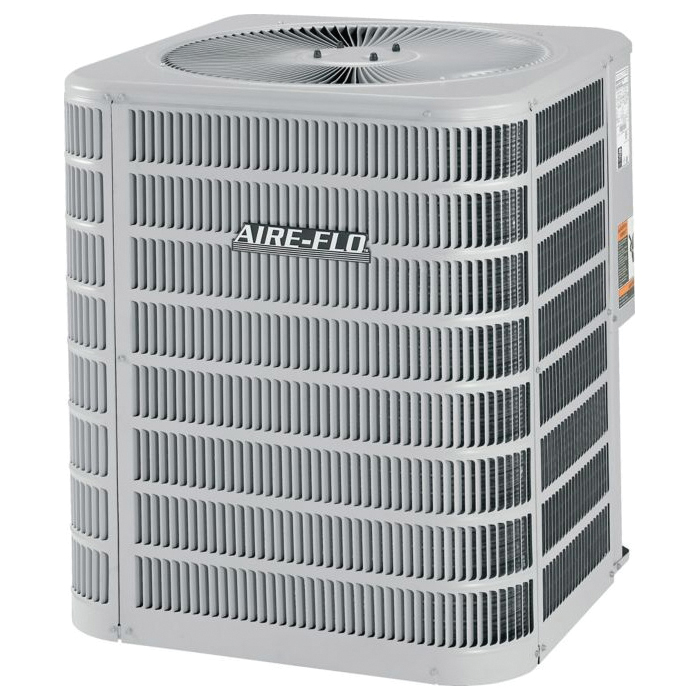

Aire-Flo® Heat Pump, 4HP13L Series, 208/230 V, 14.2 A, 1/10 hp, 60 Hz, 1 ph Phase, 1075 rpm Rotational Speed, 24000 Btu/hr, 11 EER Rating, 13 SEER, 7.7 HSPF, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 20 A Fuse Rating, Tonnage: 2 ton, 76 dBA Sound Level, 1 Stages, Steel, Finish: Painted, 33-1/4 in H x 24-1/4 in W x 24-1/4 in D, Additional Information: Vertical Configuration
| Additional Information | : | Vertical Configuration |
| Amperage Rating | : | 14.2 A |
| BTU Rating | : | 24000 Btu/hr |
| Compressor Type | : | Scroll |
| Dimensions | : | 33-1/4 in H x 24-1/4 in W x 24-1/4 in D |
| EER Rating | : | 11 |
| Finish | : | Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 20 A |
| HP Rating | : | 1/10 hp |
| HSPF Rating | : | 7.7 |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1075 rpm |
| SEER Rating | : | 13 |
| Series | : | 4HP13L Series |
| Sound Level | : | 76 dBA |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2 ton |
| Voltage Rating | : | 208/230 V |
- Quiet, durable scroll compressor with internal pressure relief valves and inherent thermal protection
- High quality outdoor coils constructed of copper tubes with enhanced louvered fins for maximum heat transfer capability
- Louvered cabinet protects coil from fin damage
- Vertical air discharge sends hot air up and away from home and shrubbery
- Easy-access to electrical panel, pre-wired for easy hook-up
- Angled service valves are positioned to allow easy-access with low loss fittings and are set for direct and straight line set access to the home
- Bi-directional liquid line filter drier factory installed
- Discharge muffler for quiet operation
- Low pressure switch factory installed
- Integrated control with LED diagnostics and adjustable time (30/60/90-minutes) and temperature defrost control furnished
- Short cycle protection
- The corrosion-resistant cabinet is built from strong, heavy-gauge pre-painted steel and has drain holes to quickly remove standing water from the base pan before corrosion can start
Specification Sheet
