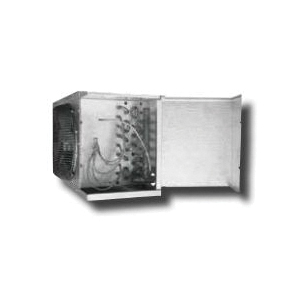

Witt Walk-In Unit Cooler, Series: Super-Flo Series, 230 V, 2000 W, 1 ph, 9200 Btu/hr, 1560 cfm CFM Rating, 1/2 in, 7/8 in, 2 Number of Fans, 6 FPI Fins per Inch, Aluminum, Textured, 15-1/4 in H x 45-1/2 in W x 15 in D
| BTU Rating | : | 9200 Btu/hr |
| CFM Rating | : | 1560 cfm |
| Connection Size | : | 1/2 in, 7/8 in |
| Dimensions | : | 15-1/4 in H x 45-1/2 in W x 15 in D |
| Finish | : | Textured |
| Fins per Inch | : | 6 FPI |
| Material | : | Aluminum |
| Number of Fans | : | 2 |
| Phase | : | 1 ph |
| Power Rating | : | 2000 W |
| Series | : | Super-Flo Series |
| Voltage Rating | : | 230 V |
- Seamless copper tubes are staggered and mechanically expanded into corrugated aluminum fins and heavy-gauge tube sheets to achieve maximum heat transfer and strength
- Heavy-duty 12 in aluminum fans are balanced to provide vibration-free operation
- A large compartment is supplied internal to the unit for all electrical components and is easily accessible by removing the end panel
- Rust-free, heavy gauge, textured aluminum casing is lightweight yet durable
- Slotted hangers are provided for easy installation
- Drain fittings are installed in the horizontal position to gain more usable headroom in low ceiling applications
- The end panels now are hinged to open up out for easy access to both the piping and electrical ends
- Placement of the heaters internal to the coil allows for an extremely rapid and efficient defrost
- A lower heater is installed close to the drain pan for fast, reliable drainage, heater safety thermostat is installed to prevent heaters from overheating above 75 deg in case of DT failure
- A defrost termination thermostat terminates the defrost cycle when the temperature is satisfied
- A fan delay thermostat is supplied to allow the warm coil to cool after a defrost cycle prior to the fans turning on
- Revision code
