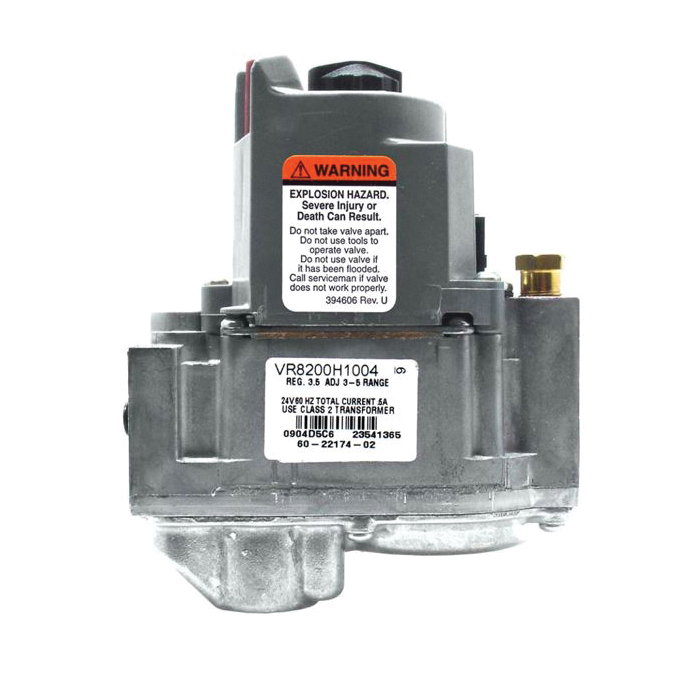

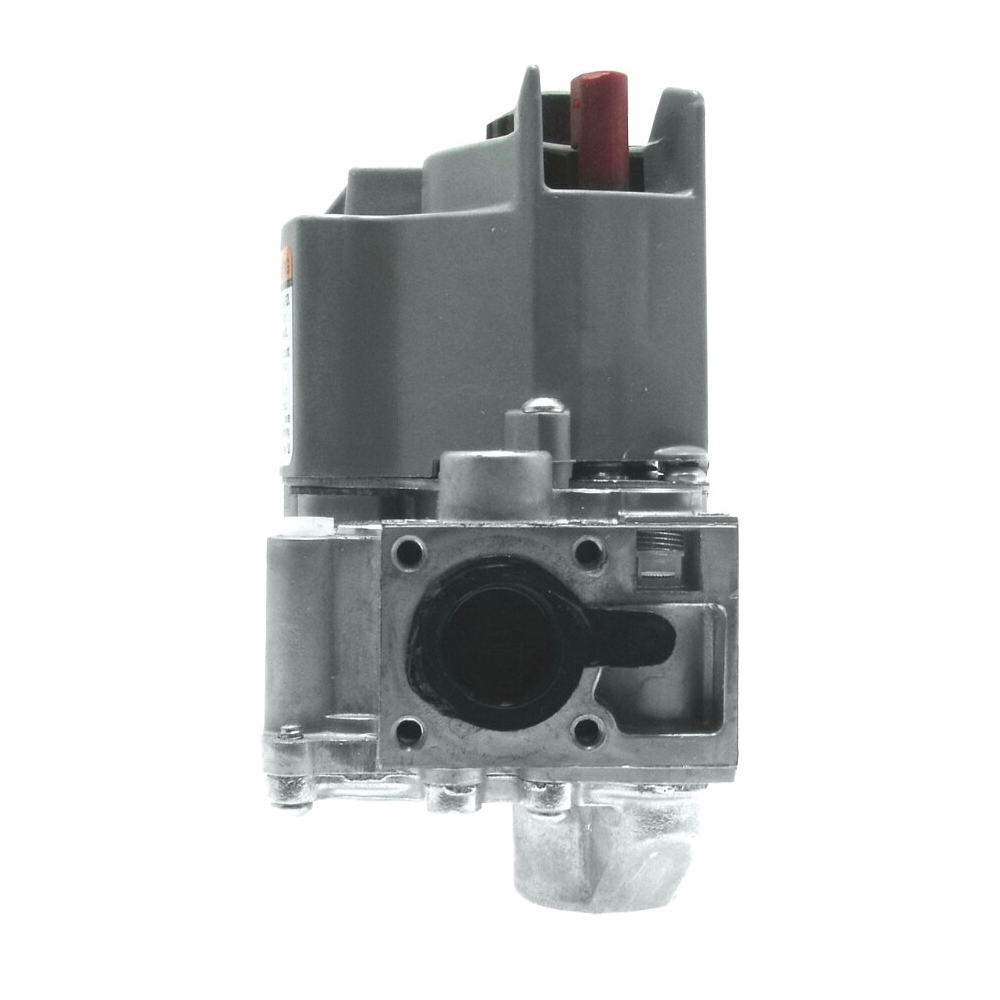

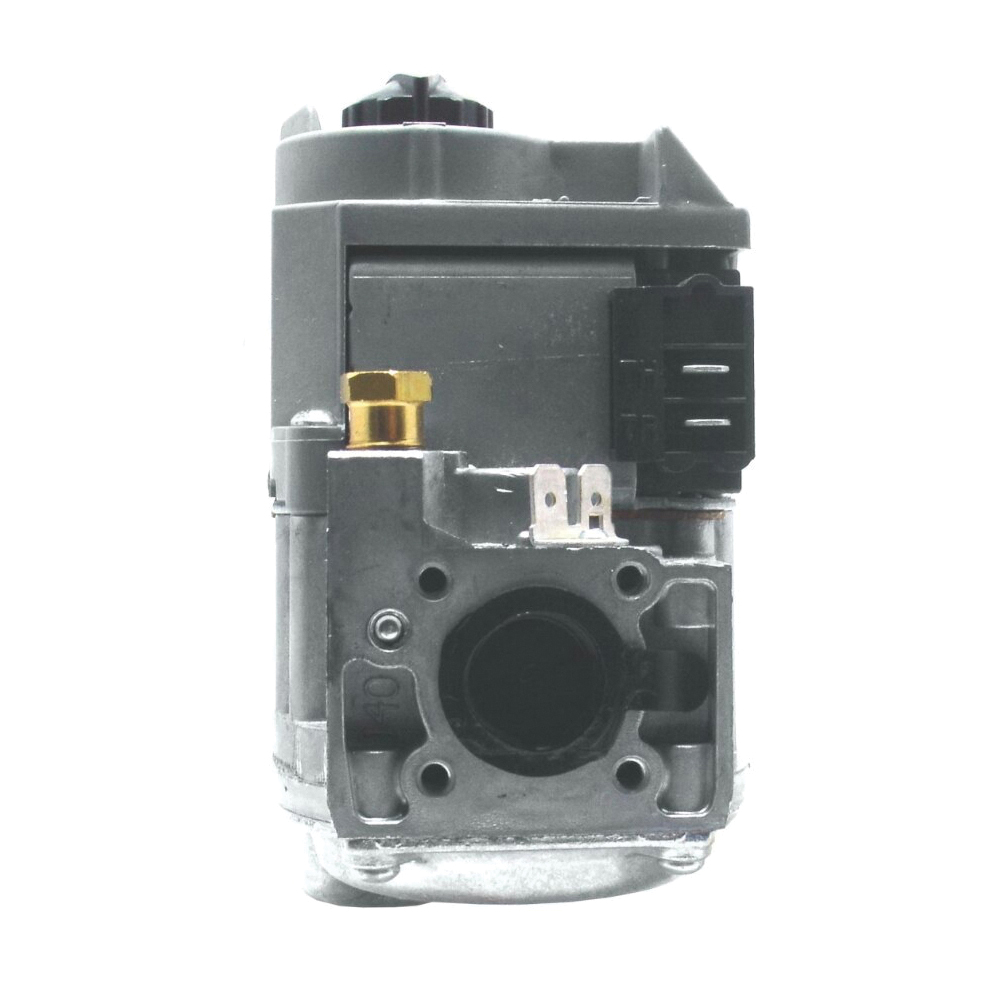

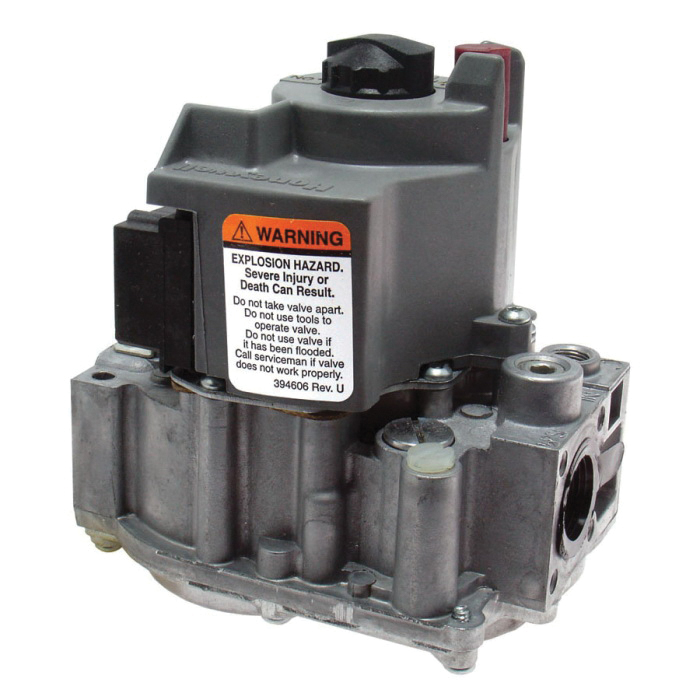

Rheem® 1-Stage Valve, Series: VR8200 Series, 1/2 in Nominal, NPT, 0 to 175 deg F, Media: Gas, 2-11/16 in Width, 5-3/16 in Height, 4-1/8 in D, For Use With: Model RGDG, RGLG, RGLH Gas Furnaces, Additional Information: 150000 Btu/hr Nominal Capacity, 24 V Voltage, Natural Gas Fuel, One-Stage, Standing Pilot Ignition
| Additional Information | : | 150000 Btu/hr Nominal Capacity, 24 V Voltage, Natural Gas Fuel, One-Stage, Standing Pilot Ignition |
| Depth | : | 4-1/8 in |
| End Type | : | NPT |
| Height | : | 5-3/16 in |
| Media | : | Gas |
| Nominal Size | : | 1/2 in |
| Series | : | VR8200 Series |
| Suitable For Use With | : | Model RGDG, RGLG, RGLH Gas Furnaces |
| Temperature Rating | : | 0 to 175 deg F |
| Width | : | 2-11/16 in |
- Control includes safety shut-off, manual valve, two automatic operators, pressure regulator and pilot adjustment
- Compact size
- Provides two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of the regulator; closes if gas or power supply is interrupted
- Meets codes requiring dual safety shut-off
- Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- Compatible with ECO connector
- LITE-RITE (OFF-PILOT-ON) lighting sequence
- Combination gas control for use in 24 VAC gas fired, standing pilot appliances with capacities from 30 - 300 cu-ft/hr
- 60-22513-03 LPG spring kit and 60-23430-01 natural gas spring kit included
