Russell AA28-76B-AS 1111604

The Russell® All-Temp2B is the original low profile unit cooler that has established an industry standard as being the all purpose design for walk-in coolers, freezers and other applications. They feature an air draw through design offering air, electric and hot gas defrost models.

Russell Unit Cooler, Series: All-Temp 2B Series, 115 V, 3.8 A, 1/20 hp HP Rating, 1 ph, 9100 Btu/hr, 1460 cfm CFM Rating, 1/2 in, 5/8 in, 2 Number of Fans, 8 FPI Fins per Inch, Aluminum, Textured, 35 deg F, 15-1/4 in H x 41-1/2 in W

• Rust-free, heavy gauge, textured aluminum casing is lightweight yet durable
• Each fan section is baffled to prevent short cycling of the air
• The unit is designed to mount flush to the ceiling and meets all NSF requirements
• Slotted hangers are provided for easy installation
• Drain fittings are installed in the horizontal position to gain more usable headroom in low ceiling applications

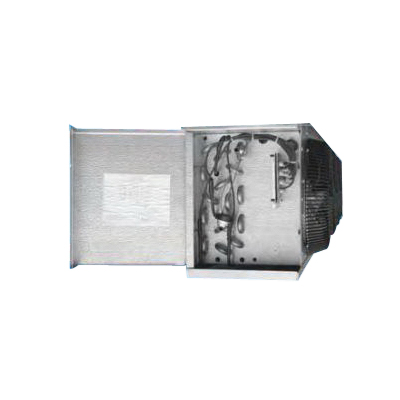

• The end panels now are hinged to open up out for easy access to both the piping and electrical ends
• Optional expansion valves can be conveniently installed inside the cabinet
• Seamless copper tubes are staggered and mechanically expanded into corrugated aluminum fins and heavy-gauge tube sheets to achieve maximum heat transfer and strength
• Die-formed fin collars provide even fine spacing
• Shaded pole motors are 1/20 hp, permanently lubricated, ball bearing, with thermal overload protection
• Heavy-duty 12 in aluminum fans are balanced to provide vibration-free operation
• Our new low throw black plastic fan guards have an improved air pattern
• The optional epoxy resin high throw fan guard moves air upto 50 ft
• All models with the prefix "AA" are designed for use in coolers of 35 deg F and warmer
• A large compartment is supplied internal to the unit for all electrical components and is easily accessible by removing the end panel

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Russell_AA46_192B_DP_Catalog.pdf
