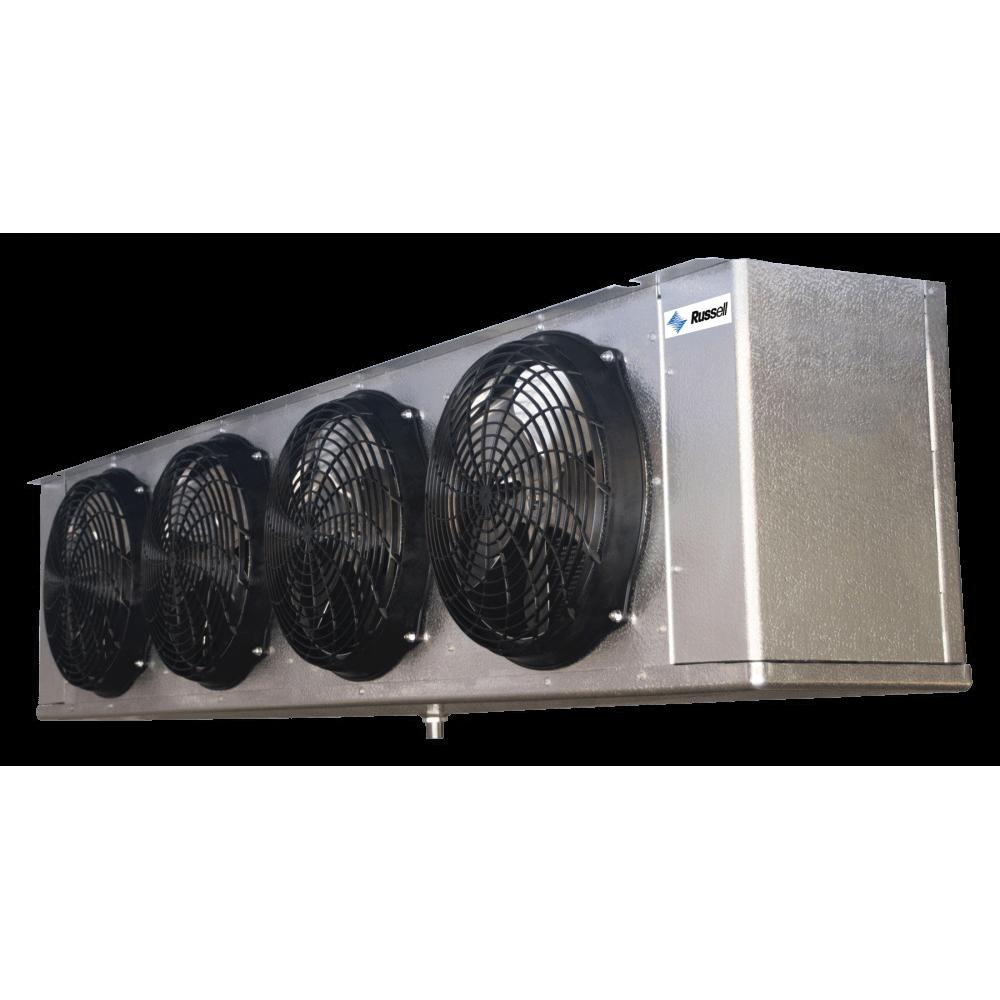

Russell RL6A235ADA 1111607

Russell All-Temp were the original low profile unit coolers that established the industry standard as being the all-purpose design for walk-in coolers, freezers and other applications. We've taken these unit coolers to the next level with the release of the Next-Gen All-Temp models. The units feature a new fan guard design and deep draw venturi to achieve optimal airflow and easy access for serviceability.

Russell Next-Gen All-Temp Standard Low Profile Walk-In Unit Cooler, 115 V, 3.2 A, 60 Hz, 1 ph, 23500 Btu/hr BTU, 3140 cfm CFM, NPT Connection, 3/4 in Connection, Aluminum Fin, Copper Tube, R-404A, 4-Fans, 2 Speed, ECM Motor, Fins per Inch: 6 FPI, Ceiling, Flush Mount, Aluminum, 10 to 25 deg F, 76-5/8 in L x 18-1/8 in W x 16-3/4 in H, Air Defrost Style, 20 A Maximum Overcurrent Protection Device, 15 A Minimum Current Ampacity, 3/8 in Liquid, 5/8 in Suction

• Embossed aluminum housing is lightweight and durable
• Fan sections are baffled to prevent short cycling of air

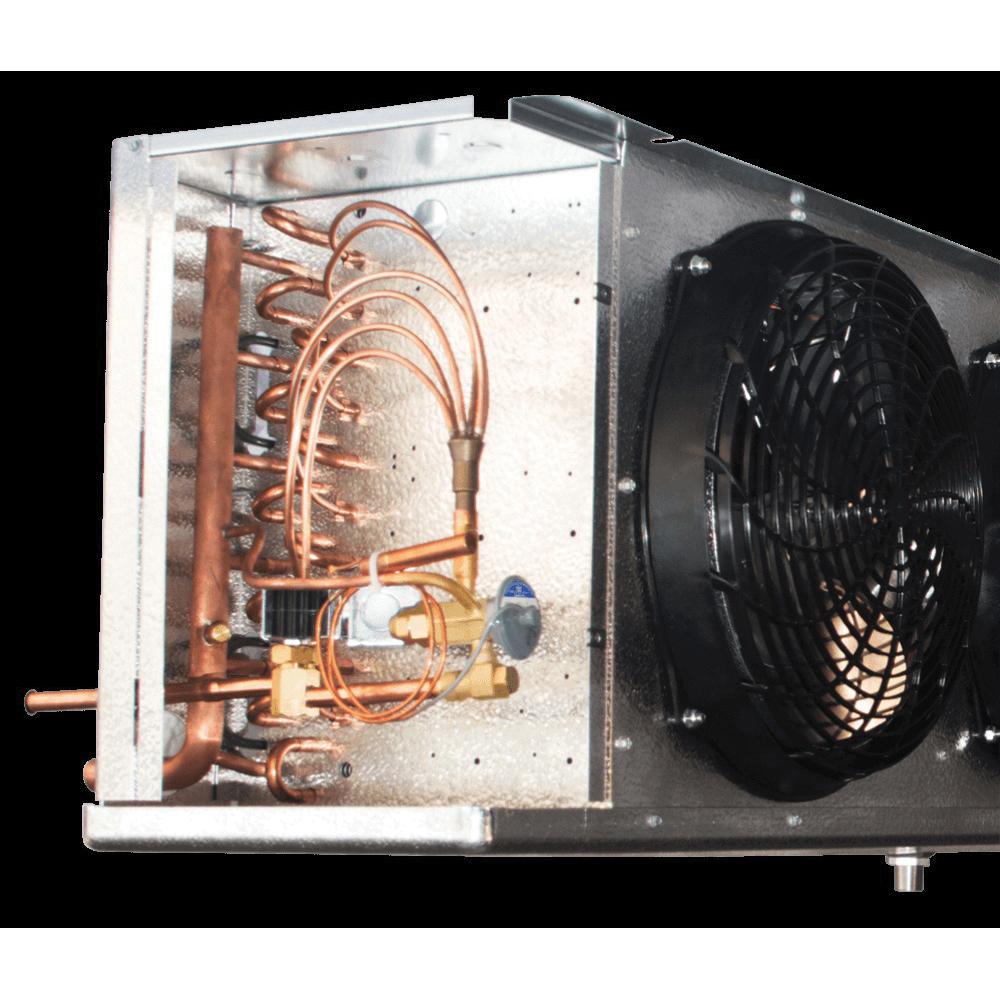

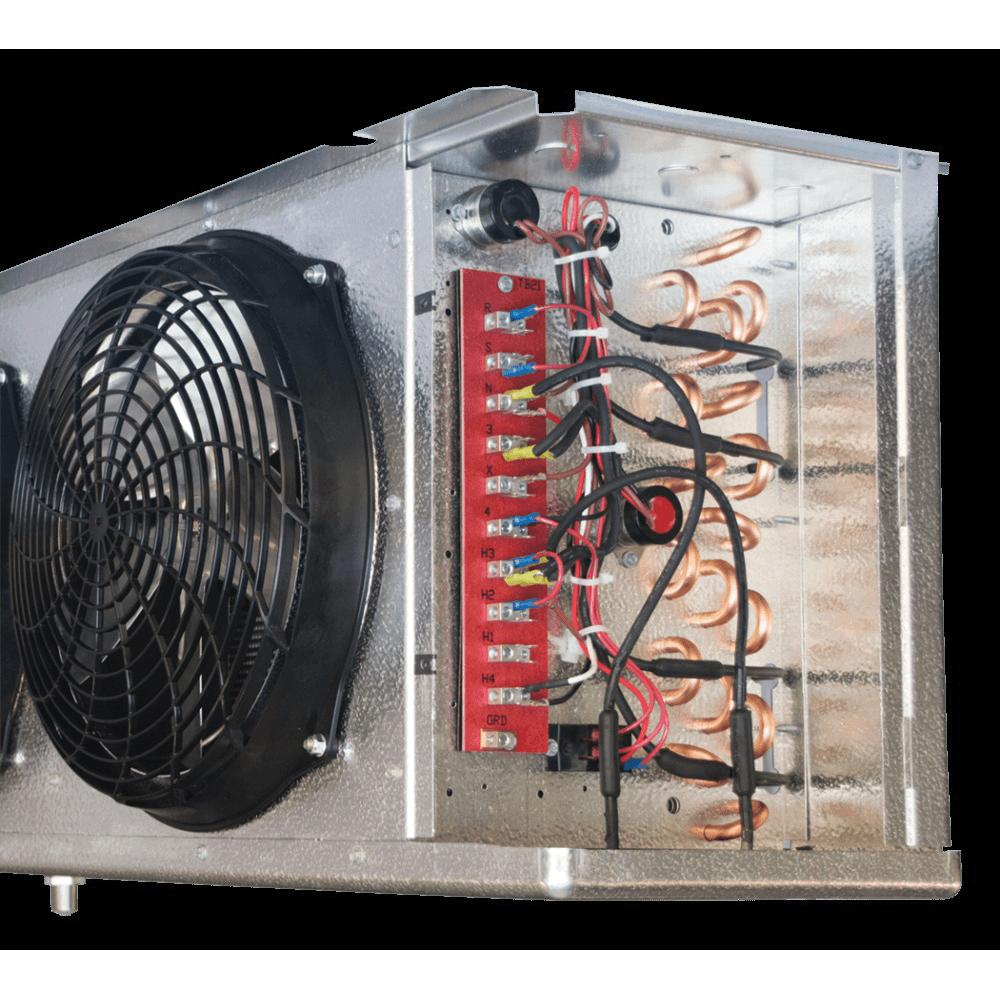

• End panels slide out for easy serviceability from the front or ends of the unit
• Mounts flush to the ceiling to maximize headroom and space

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Russell_RL6A235ADA_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Russell_RL6A235ADA_Instruction_Installation_Manual.pdf
