Rheem® SP1082-003 1077805
  1. pin-int

Rheem® SP1082-003 1077805

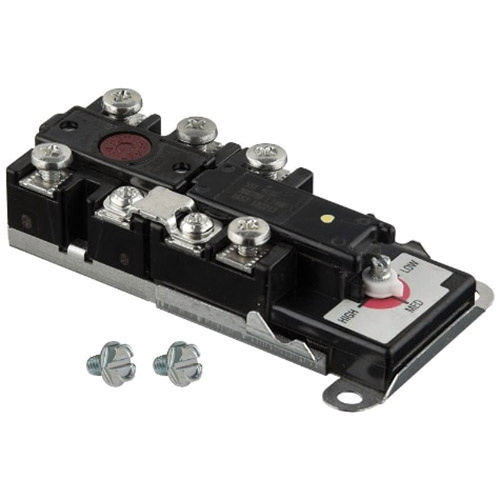

Rheem® SP1082-003 Upper Thermostat, 120/240/277 VAC, SPDT Switch

  • Manufacturer: Rheem Manufacturing
  • Brand Name: Rheem®
  • Part Number: 1077805
  • MPN: SP1082-003
  • UPC: 662766565928
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Rheem® Upper Thermostat, 120/240/277 VAC, 3600 W Power, SPDT Switch, Contact Rating: 30 A at 120 to 240 V, 25 A at 277 V, 125 A at 120 to 480 VA, 80 to 140 deg F, Suitable For Use With: Water Heaters

Contact Rating      :      30 A at 120 to 240 V, 25 A at 277 V, 125 A at 120 to 480 VA
Power Rating      :      3600 W
Suitable For Use With      :      Water Heaters
Switch Type      :      SPDT
Temperature Rating      :      80 to 140 deg F
Voltage Rating      :      120/240/277 VAC
  • A thermostat controls the power to the heating elements
  • If the water in the tank is below the desired temperature, the thermostat will turn on the heating element
  • This thermostat also includes a manual reset high limit
