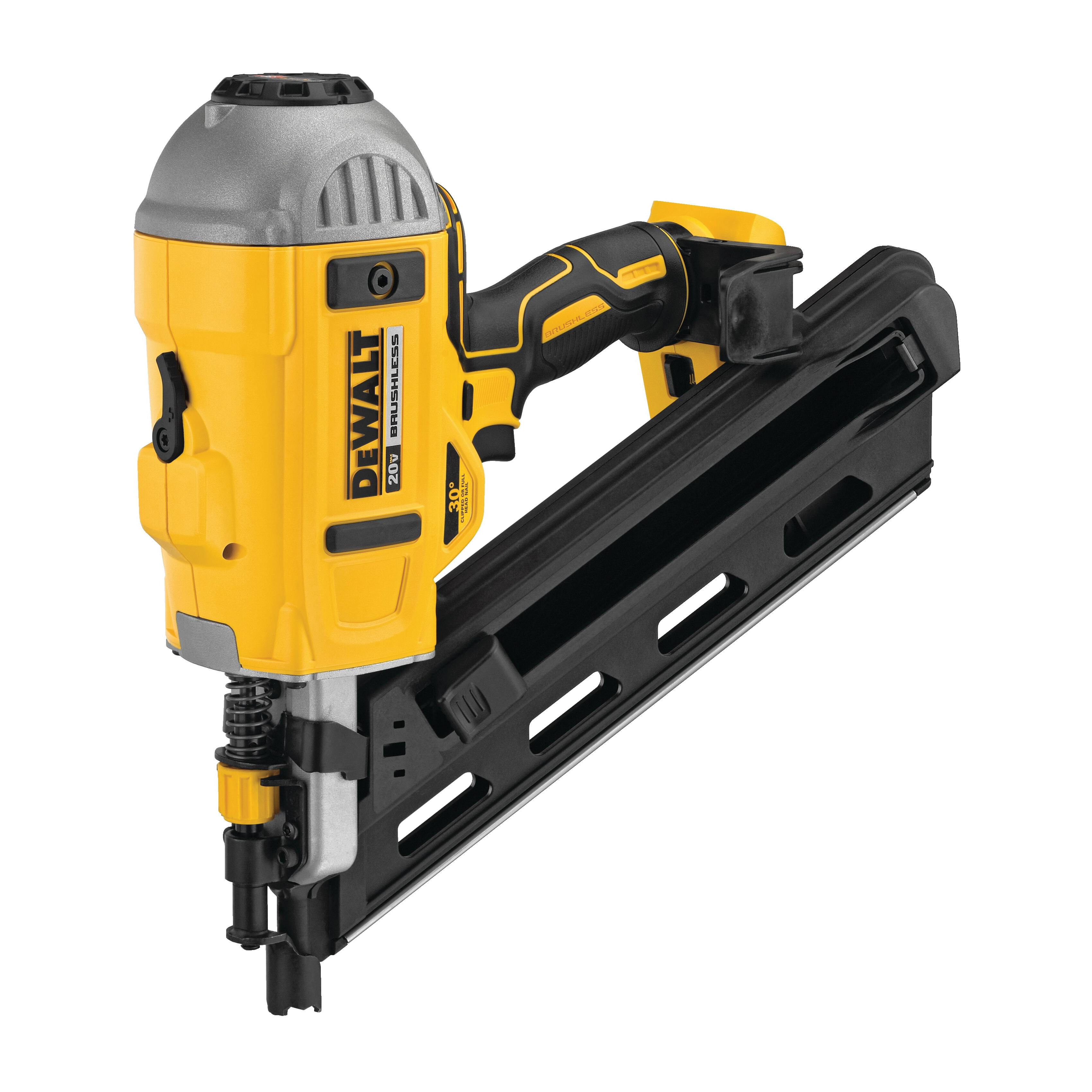

DeWALT® DCN692B 1079577

The 20V MAX* cordless 30 deg paper collated framing nailer drives nails from 2 to 3-1/2 in. With long runtime and powerful versatility, this nailer is built-to handle tough jobsite-duty. This tool features our upgraded engine design for increased power and drive quality compared to previous DeWALT® cordless nailers. Its compact shape, well balanced design and easy to operate features make it an efficient, highly productive tool in your team's hands.

DeWALT® Paper Collated Framing Nailer, Tool, 55 Nail Capacity, 2 to 3-1/2 in Nail Length, 0.113 to 0.131 in Nail Diameter, 30 deg Magazine Angle, Rear Magazine Loading, Bump, Sequential, Tool-Free Selectable Trigger, 20 VDC, Lithium-Ion Battery, Plastic Housing, Black/Yellow Housing, Selector Switch, Pistol Grip Handle, 13-1/4 in Overall Length, 4 in Overall Width

• Dual speed motor optimized to drive a wide range of fasteners for a variety of applications
• Tool-free depth adjustment for precise nail placement
• Adjustable rafter hook
• Dry fire lockout prevents tool from firing when nails are low
• Capable of driving 3-1/2 in fasteners into dense lumber
• Tool-free selector switch for sequential or bump fire modes
• Stall release lever to reset driver blade in the event of a jam
• Easy access to the nosepiece for removal of jammed nails
• 33 deg magazine holds up to 55 paper collated nails

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/DeWALT_DCN692B_Instruction_Installation_Manual.pdf
