Russell RL6A235ADAAA 1071586

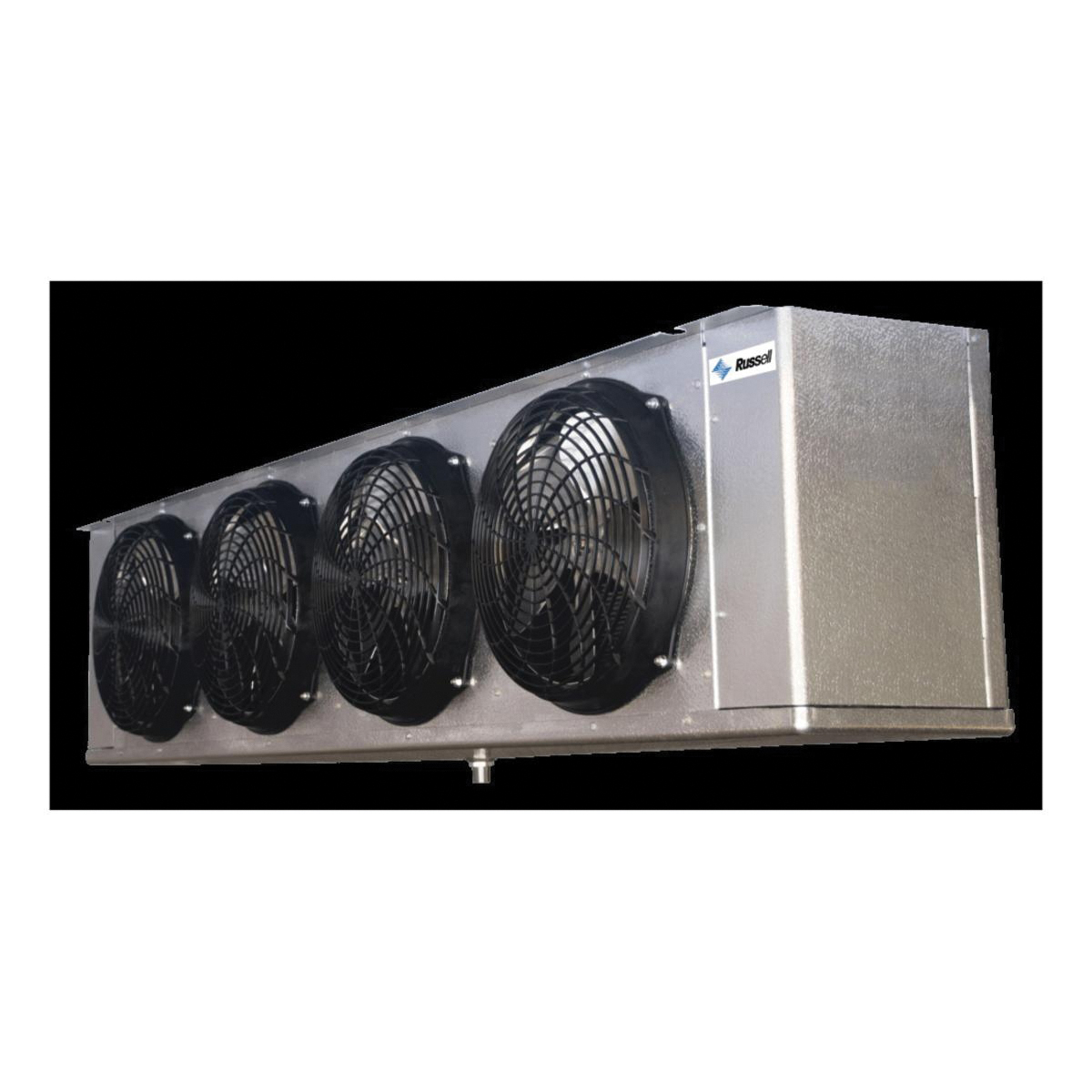

Russell® All-Temps were the original low profile unit coolers that established the industry standard as being the all-purpose design for walk-in coolers, freezers and other applications. We've taken these unit coolers to the next level with the release of the Next-Gen All-Temp models. The units feature a new fan guard design and deep draw venturi to achieve optimal airflow and easy access for serviceability. These Models can be used with multiple refrigerants and are available in air, electric and hot gas defrost configurations.

Russell Next-Gen Unit Cooler, Series: All-Temp Series, Model: RL6A, 115 V, 3.2 A, 60 Hz, 1 ph, 23500 Btu/hr, 3140 cfm CFM Rating, 3/8 in, 7/8 in, 12 in Fan Size, 4 Number of Fans, 3/8 in Tube, 6 FPI Fins per Inch, Ceiling, Wall Mount, Aluminum/Copper, Embossed, 16-3/4 in H x 76-5/8 in W x 15-1/2 in D

• Dual-speed EC motors (dual speed EC motors are compliant with California Title 24 Regulations)
• Embossed aluminum housing is lightweight and durable
• Fan sections are baffled to prevent short cycling of air

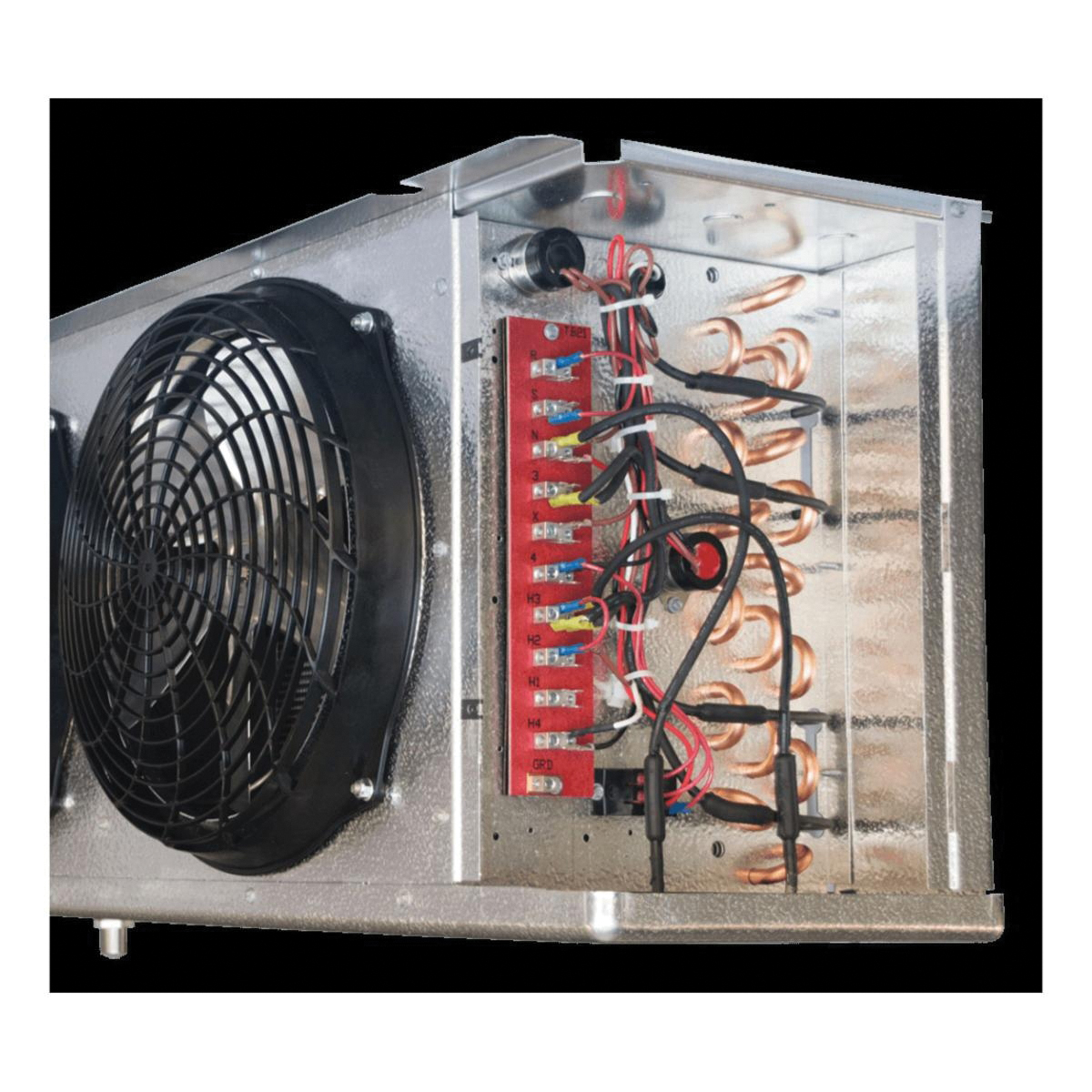

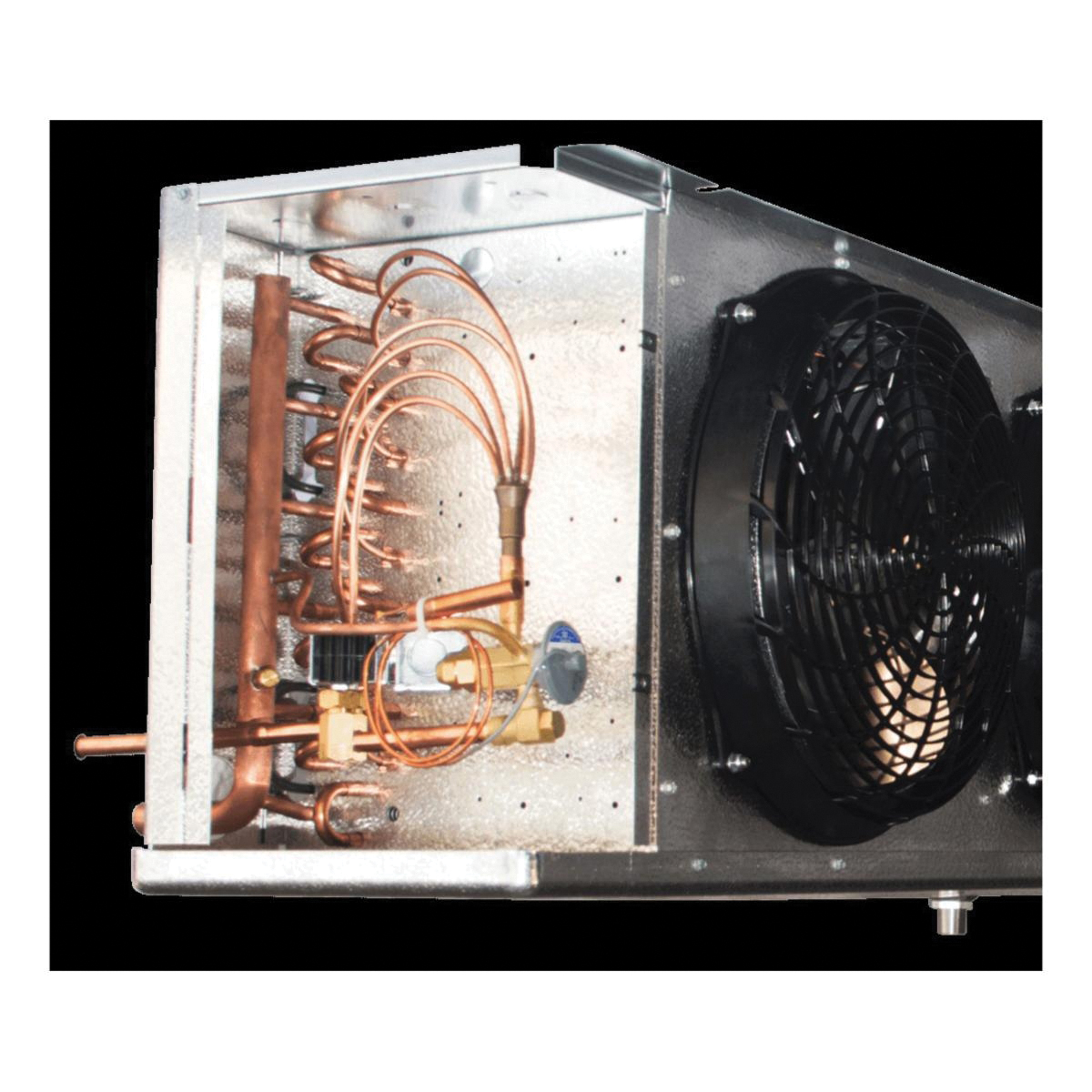

• End panels slide-out for easy serviceability from the front or ends of the unit
• Mounts flush to the ceiling to maximize headroom and space
• UL/cUL certified for use with multiple refrigerants
• NSF approved for use in food preparation areas
• For use in coolers 35 deg F and warmer

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Russell_RL6A066ADAAA_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Russell_RL6A066ADAAA_Instruction_Installation_Manual.pdf
