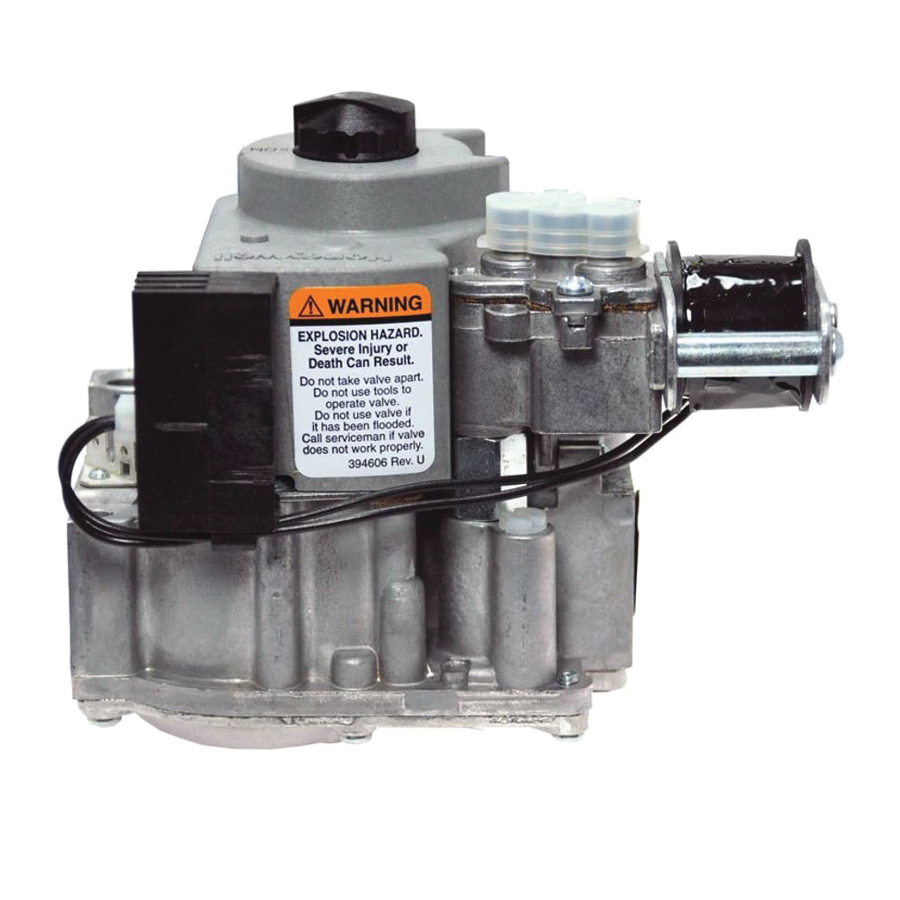

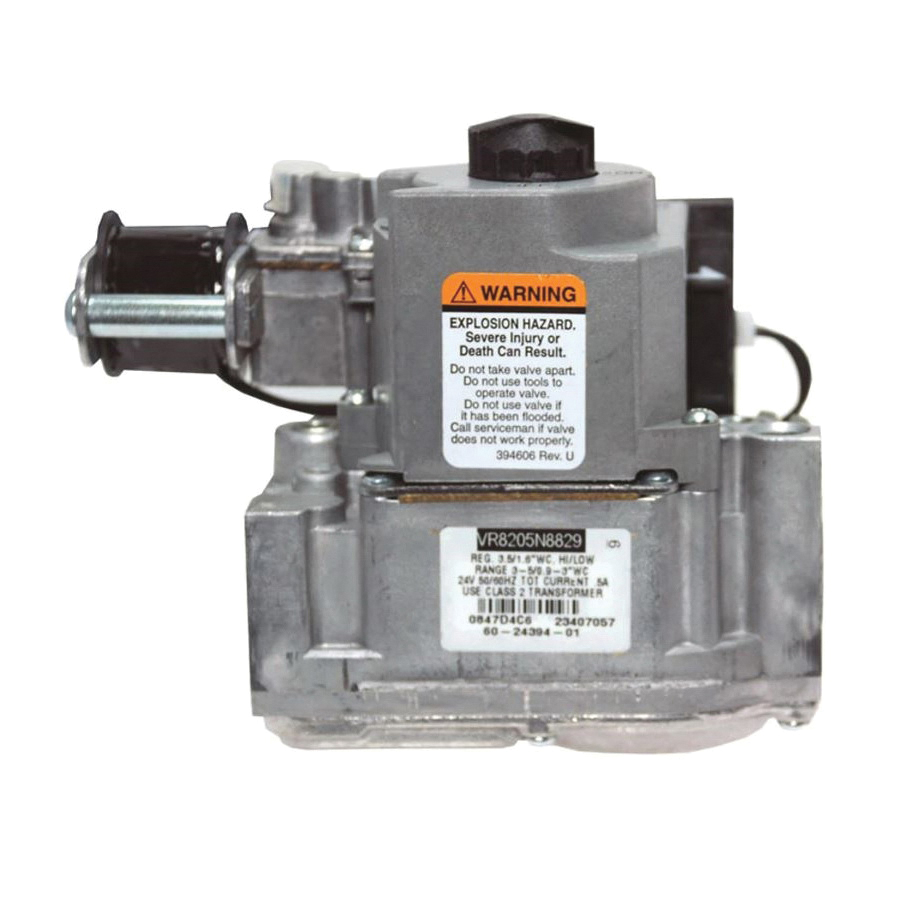

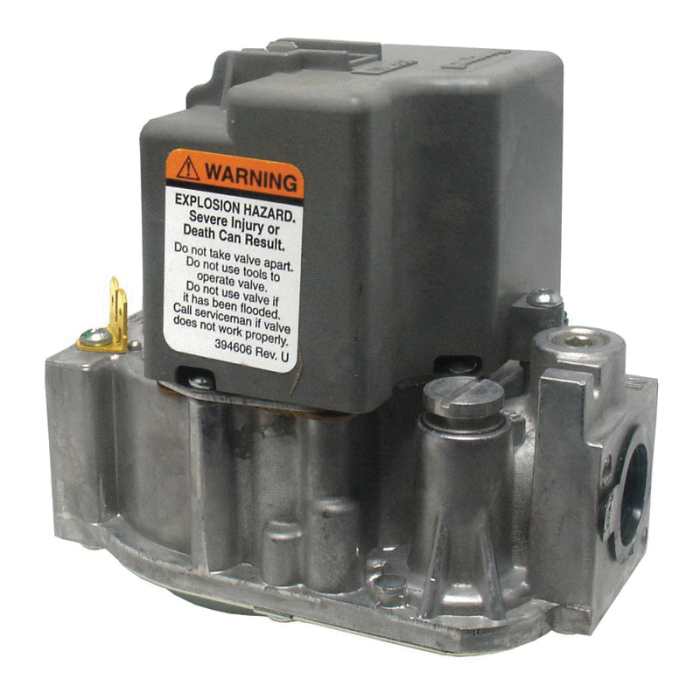

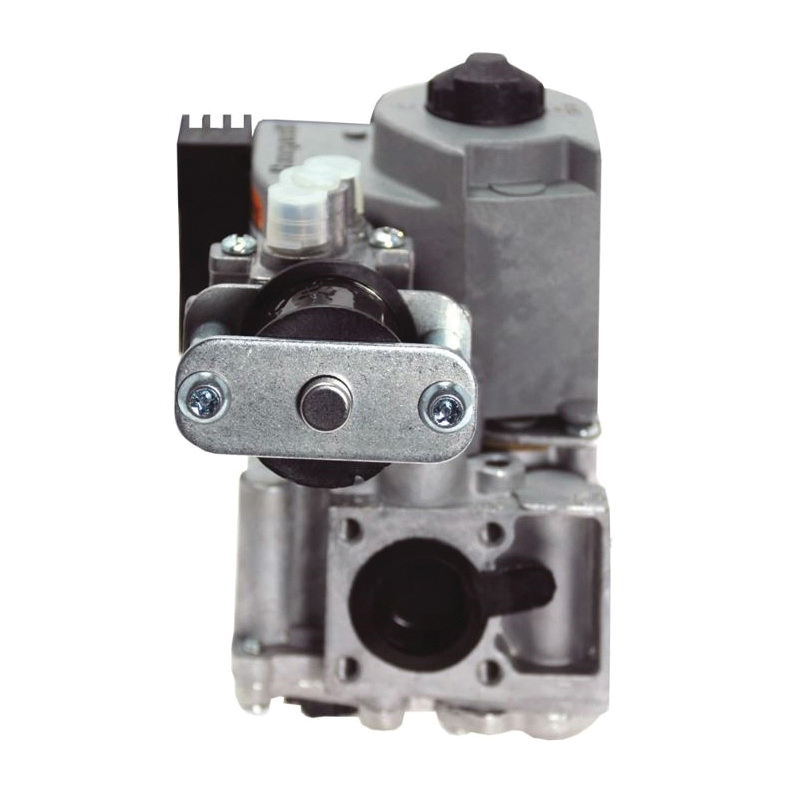

Rheem® Gas Valve, Series: VR8205 Series, 1/2 in Nominal, NPT, Media: Natural Gas, 3-5/16 in Width, 4-3/4 in Height, 5-5/8 in D, For Use With: Model RGLK, RGLL, RGLR, RGPK, RGPL, RGPR, RGRK, RGTK Gas Furnaces, Additional Information: 150000 Btu/hr Nominal Capacity, 24 V Voltage, Direct Ignition, Hot Surface, Natural Gas Fuel, Two Stages
| Additional Information | : | 150000 Btu/hr Nominal Capacity, 24 V Voltage, Direct Ignition, Hot Surface, Natural Gas Fuel, Two Stages |
| Depth | : | 5-5/8 in |
| End Type | : | NPT |
| Height | : | 4-3/4 in |
| Media | : | Natural Gas |
| Nominal Size | : | 1/2 in |
| Series | : | VR8205 Series |
| Suitable For Use With | : | Model RGLK, RGLL, RGLR, RGPK, RGPL, RGPR, RGRK, RGTK Gas Furnaces |
| Width | : | 3-5/16 in |
- Controls include manual valve, two automatic operators and pressure regulator
- Provide two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of the regulator; closes if gas or power supply is interrupted
- Meets codes requiring dual safety shut-off
- Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- ON-OFF lighting sequence
- 60-22513-04 LPG spring kit and 607017 natural gas spring kit included
