Rheem® 60-101921-81 1087436

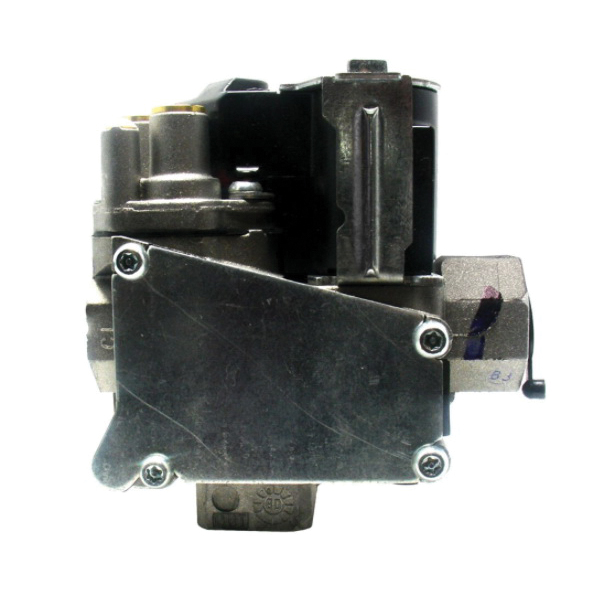

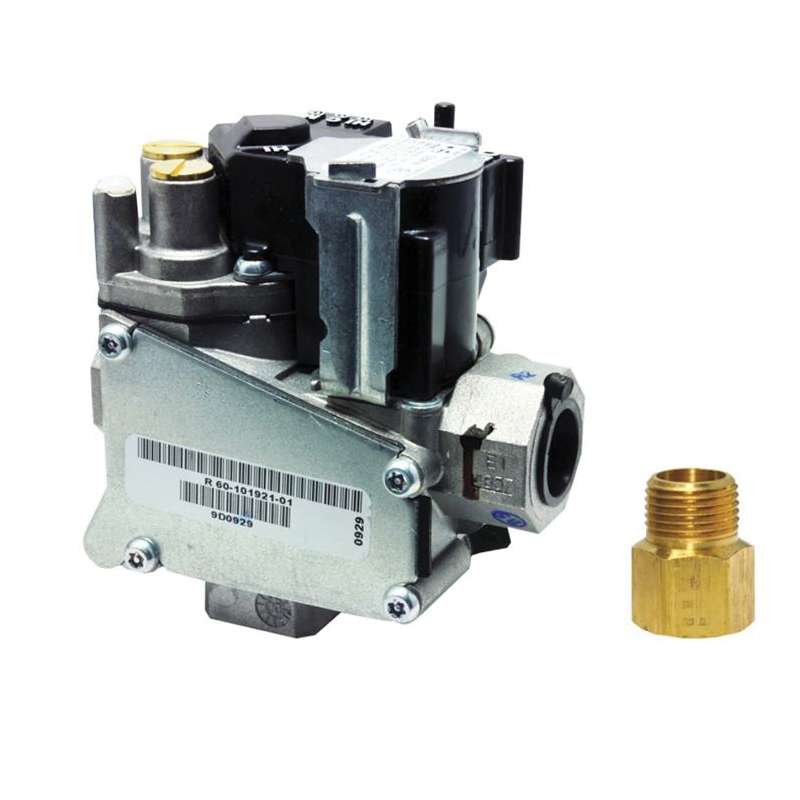

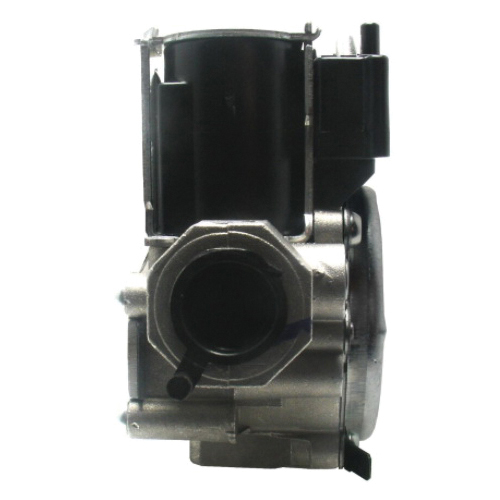

Rheem® 36G Series 60-101921-81 Combination Gas Valve, 1/2 in Nominal, NPT End

  • Manufacturer: Rheem Manufacturing
  • Brand Name: Rheem®
  • Part Number: 1087436
  • MPN: 60-101921-81
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The 36G is a combination gas control valve designed for use with non-piloted intermittent ignition systems. The control is designed to meet today's maximum capacity, smaller size and high efficiency gas systems.

Rheem® Combination Gas Valve, Series: 36G Series, 1/2 in Nominal, NPT, 2-7/16 in Width, 4-1/4 in Height, 4 in D, For Use With: Model R802P-MSA, MXA, ZSA, ZSB, R802T-MSA, MXA, R802V-MSA, MXA, ZSA, ZSB, RGLK, RGLL, RGLQ, RGLR, RGPK, RGPL, RGPQ, RGPR, RGRK, RGTK Gas Furnaces, Additional Information: 140000 Btu/hr Nominal Capacity, 24 V Voltage, Direct Ignition, Hot Surface, Natural Gas Fuel, Two Stages

Additional Information      :      140000 Btu/hr Nominal Capacity, 24 V Voltage, Direct Ignition, Hot Surface, Natural Gas Fuel, Two Stages
Depth      :      4 in
End Type      :      NPT
Height      :      4-1/4 in
Nominal Size      :      1/2 in
Series      :      36G Series
Suitable For Use With      :      Model R802P-MSA, MXA, ZSA, ZSB, R802T-MSA, MXA, R802V-MSA, MXA, ZSA, ZSB, RGLK, RGLL, RGLQ, RGLR, RGPK, RGPL, RGPQ, RGPR, RGRK, RGTK Gas Furnaces
Width      :      2-7/16 in
  • Inlet and outlet screens
  • Quiet redundant
  • Built-in pressure tap
  • Quick-connect terminals (1/4 in)
