Rheem®_DEL_2024_MAR_19_11_57_08 RSNL-B036JK010AKA 1092807

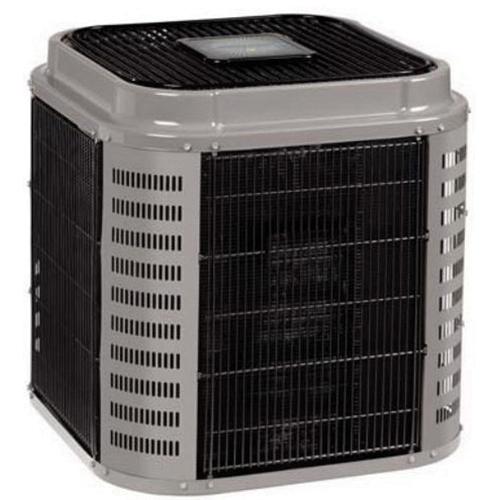

Rheem® RSNL-B, Classic RSNL-B036JK010AKA Air Conditioner Package Unit, 3 ton Nominal, 36000 Btu/hr Cooling BTU, 25 A
- Manufacturer: Rheem Manufacturing_DEL_2024_MAR_19_11_56_58
- Brand Name: Rheem®_DEL_2024_MAR_19_11_57_08
- Part Number: 1092807
- MPN: RSNL-B036JK010AKA
- UPC: 662021245855
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
Rheem® Air Conditioner Package Unit, Series: RSNL-B, Classic, Model: B036JK, 3 ton Nominal Capacity, 36000 Btu/hr Cooling BTU, 208 to 230 VAC, 25 A, 10.55 kW Cooling, 10 kW Heating Wattage, 1/5 hp Condenser, 1/2 hp Blower Motor, 1075 rpm Rotational Speed, 60 Hz, 1 ph Phase, (1) Scroll Compressor, 1200 cfm, 11.3 EER Rating, 13 SEER, 2 Stages, R-410A Refrigerant, 76 dBA Sound Level, Direct Drive, Outdoor Coil - 14.8 sq-ft Face Area, 22 Fins/in, 1 Rows, Indoor Coil - 5.54 sq-ft, 15 Fins/in, 2 Rows Coil Rating, 3/4 in Drain Connection, 1 x 24 x 24 in Filter, 40 A Fuse Rating, 47-1/2 in W x 35-15/16 in H x 52-7/16 in D
| Amperage Rating | : | 25 A |
| CFM Rating | : | 1200 cfm |
| Coil Rating | : | Outdoor Coil - 14.8 sq-ft Face Area, 22 Fins/in, 1 Rows, Indoor Coil - 5.54 sq-ft, 15 Fins/in, 2 Rows |
| Compressor Type | : | (1) Scroll |
| Connection Size | : | 3/4 in Drain |
| Cooling BTU Rating | : | 36000 Btu/hr |
| Dimensions | : | 47-1/2 in W x 35-15/16 in H x 52-7/16 in D |
| Drive Type | : | Direct |
| EER Rating | : | 11.3 |
| Filter Size | : | 1 x 24 x 24 in |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A |
| HP Rating | : | 1/5 hp Condenser, 1/2 hp Blower Motor |
| Model | : | B036JK |
| Nominal Capacity | : | 3 ton |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1075 rpm |
| SEER Rating | : | 13 |
| Series | : | RSNL-B, Classic |
| Sound Level | : | 76 dBA |
| Voltage Rating | : | 208 to 230 VAC |
| Wattage | : | 10.55 kW Cooling, 10 kW Heating |
- All models feature scroll compressors for maximum efficiency and quiet operation
- Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes
- One-piece top with a drip lip to help keep water off of the unit sides
- Supply and return air openings feature a 1 in tall flange to prevent water migration into the ductwork
- Access panels have "weep holes" and channels to further help manage water run-off
- Easily accessible blower section complete with slide-out blower
- Refrigerant connections are conveniently located for easy service diagnostics
- Condenser and evaporator coils feature enhanced fins for better heat transfer and rifled copper tubing for greater efficiency
- All units feature an internal trap on the condensate line eliminating the need for installing an onsite external trap
- Easily accessible control box
- Thermal expansion valve standard on all models for superior superheat control, reliability and energy efficiency at all operating conditions
- Filter drier standard on all models
- Rugged base rail included for improved installation and handling
- 1st future technical variations
- Factory installed side flow
