DeWALT® DWS780 1099629
  1. pin-int

DeWALT® DWS780 1099629

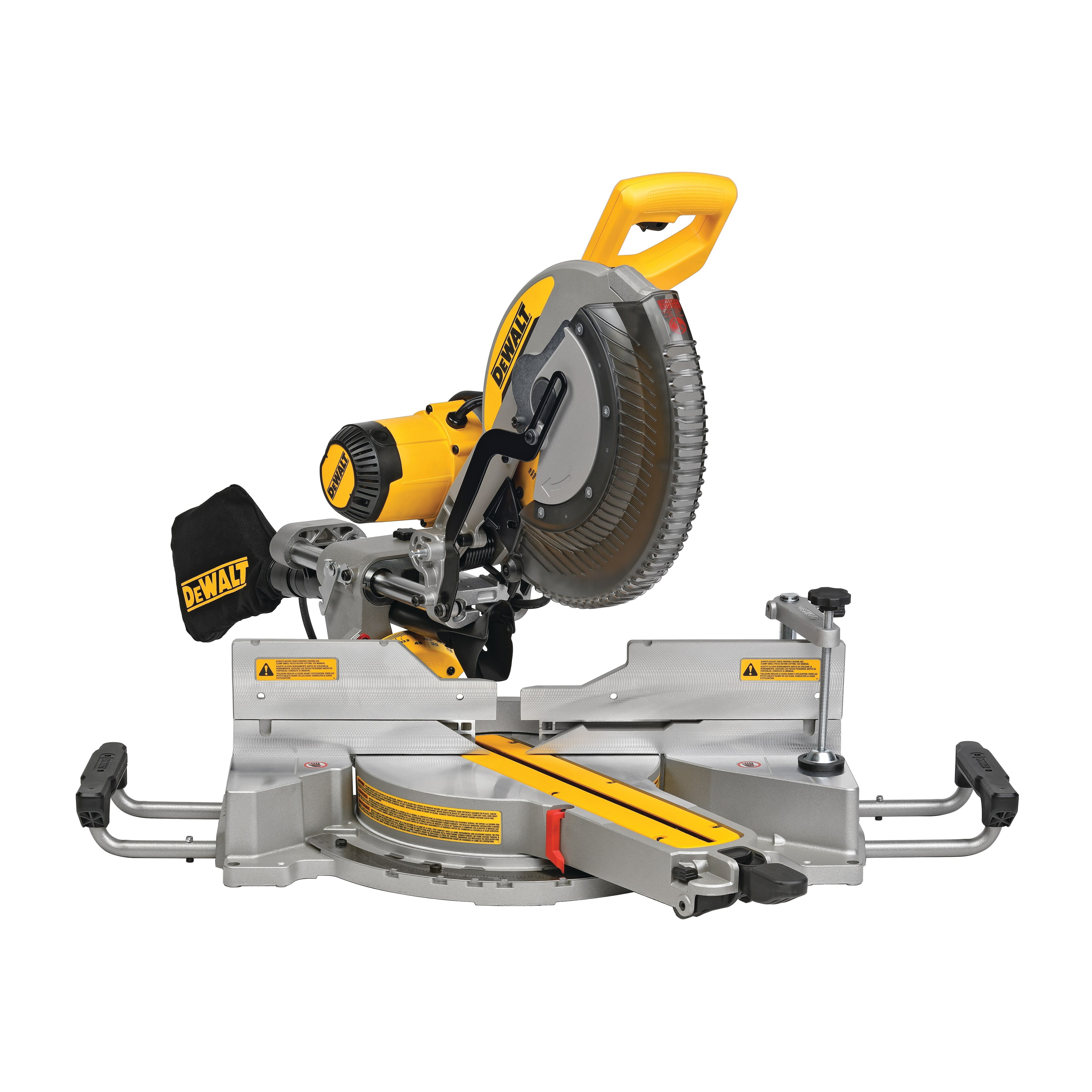

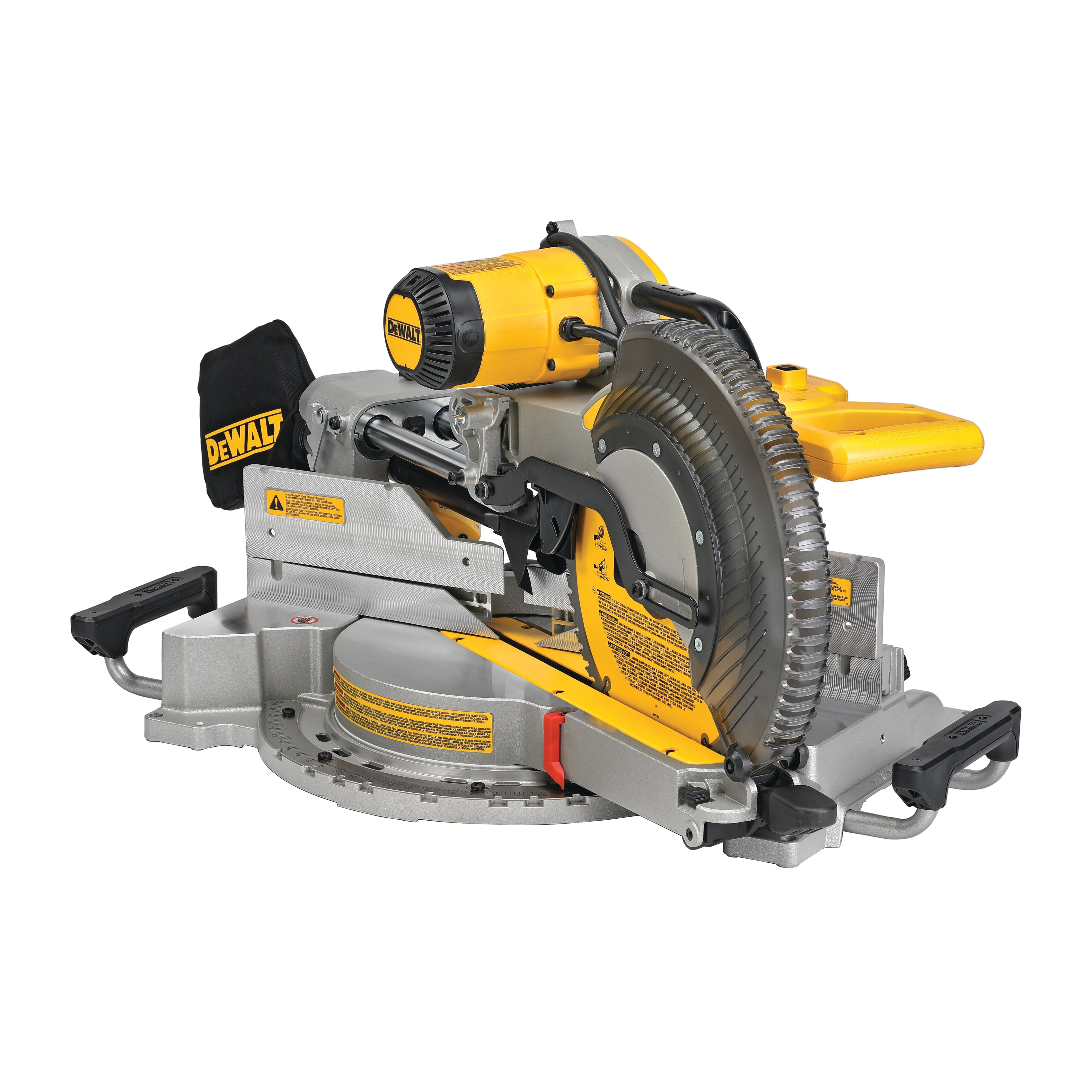

DeWALT® DWS780 Compound Miter Saw, Tool/Kit: Tool, 12 in Dia Blade, 14 in, 8 in H Cutting, 2 in, 4 in W Cutting

  • Manufacturer: Stanley Black & Decker
  • Brand Name: DeWALT®
  • Part Number: 1099629
  • MPN: DWS780
  • UPC: 028877499482
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The 12 in double bevel sliding compound miter saw has a 15 a motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication. Tall sliding fences support 7-1/2 in of nested crown and 6-3/4 in of base molding vertically. Exclusive back fence design cuts up to 2 x 14 in dimensional lumber at 90 deg increased miter capacity of 60 and 50 deg features durable stainless steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.

DeWALT® Compound Miter Saw, Tool, 12 in Blade Diameter, Carbide Blade, 14 in, 8 in Cutting Height, 2 in, 4 in Cutting Width, 5/8 in, 1 in Arbor, 45 to 90 Cutting Angle, 120 VAC, 15 A, 3800 rpm, 6 ft Cord Length, Top Handle, 23-1/2 in Overall Length, 30-1/2 in Overall Width

Amperage Rating      :      15 A
Arbor Size      :      5/8 in, 1 in
Blade Diameter      :      12 in
Blade Material      :      Carbide
Cord Length      :      6 ft
Cutting Angle      :      45 to 90
Cutting Height      :      14 in, 8 in
Cutting Width      :      2 in, 4 in
Handle Type      :      Top
Overall Length      :      23-1/2 in
Overall Width      :      30-1/2 in
Speed Rating      :      3800 rpm
Tool/Kit      :      Tool
Voltage Rating      :      120 VAC
  • Integrated CUTLINE™ blade positioning system provides adjustment-free cut line indication for better accuracy and visibility
  • Super efficient dust collection system captures over 75% of dust generated
  • Exclusive back fence design cuts up to 2x14 dimensional lumber at 90 deg and 2x10 at 45 deg
  • Miters 60 deg to the right and 50 deg to the left providing increased capacity
  • Compact, lightweight design allows for easy transport and storage
  • Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
  • Precise miter system and machined base fence support optimize durability and cutting accuracy
  • Powerful 15 A, 3800 rpm motor delivers extended power and durability
  • Tall sliding fences support crown molding up to 7-1/2 in nested and base molding up to 6-3/4 in vertically against the fence while easily sliding out of the way for bevel cuts
  • Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
  • Oversized bevel scale makes bevel angle adjustments accurate and easy
  • Cam lock miter handle with detent override deliver quick and accurate miter angles
  • Innovative gearbox and belt drive design increases vertical cutting capacity
