Rheem®_DEL_2024_MAR_19_11_57_08 RSNL-C060JK000 1052803

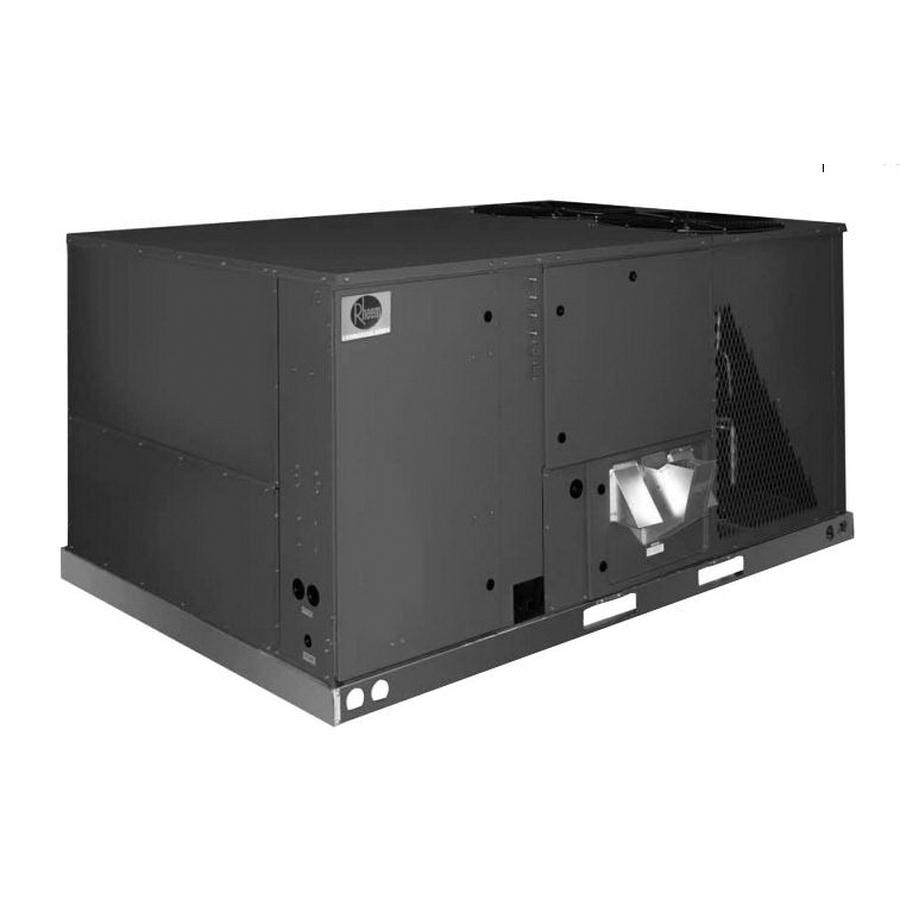

Rheem® Package Air Conditioner, Series: RSNL-C, Model: C060JK, 2 to 5 ton Nominal Capacity, 60000 Btu/hr Cooling BTU, 208 to 230 VAC, 42 A, 5.48 kW Wattage, 1/3 hp Condenser, 1 hp Blower Motor, 1075 rpm Rotational Speed, 60 Hz, 1 ph Phase, (1) Scroll Compressor, 1900 cfm, 10.5 EER Rating, 13 SEER, R-410A, HFC Refrigerant, 78 dBA Sound Level, Direct Drive, Outdoor Coil - 16.23 sq-ft Face Area, 22 Fins/in, Indoor Coil - 7.39 sq-ft Face Area, 15 Fins/in Coil Rating, 50-13/16 in W x 41 in H x 47-19/32 in D

• Efficiency designation
• Design Series
• Future technical variations
• All models feature scroll compressors for maximum efficiency and quiet operation
• Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes
• One-piece top with a drip lip to help keep water off of the unit sides
• Supply and return air openings feature a 1 in tall flange to prevent water migration into the ductwork
• Access panels have "weep holes" and channels to further help manage water run-off
• Easily accessible blower section complete with slide-out blower
• Refrigerant connections are conveniently located for easy service diagnostics
• Condenser and evaporator coils feature enhanced fins for better heat transfer and rifled copper tubing for greater efficiency
• All units feature an internal trap on the condensate line eliminating the need for installing an onsite external trap
• Easily accessible control box
• Thermal expansion valve standard on all models for superior superheat control, reliability and energy efficiency at all operating conditions
• Filter drier standard on all models
• Rugged base rail included for improved installation and handling

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Rheem_RSPL_B048JK000_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Rheem_RSPL_B036JK000_Specification_Sheet.pdf
