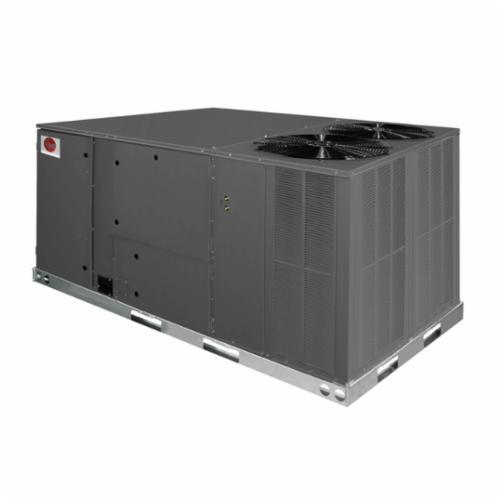

Rheem® Electric Heat Package Unit, Series: RKNL-B, Classic, Model: B090CM22E, 90000 Btu/hr Cooling, 225000 Btu/hr Heating Input BTU, 208/230 VAC, 43 A, 26.38 kW Cooling Wattage, 1/3 hp Outdoor Fan, 2 hp Indoor Fan, 1075 rpm Outdoor Fan, 1725 rpm Indoor Fan Rotational Speed, 60 Hz, 3 ph Phase, (2) Scroll Compressor, 3000 cfm, 11.9 IEER, 11.2 EER Rating, 7.5 ton Tonnage, 9 Burners, 2 Stages, R-410A, HFC Refrigerant, 88 dBA Decibel Rating, Electric Ignition, High Static Belt Drive, Outdoor Coil - 27 sq-ft Face Area, 22 Fins/in, Indoor Coil - 13.5 sq-ft Face Area, 18 Fins/in Coil Rating, 1 in Drain Connection, (6) 2 x 18 x 18 in Filter, Steel, Galvanized, Powder-Painted, 125 deg F Ambient, 95.19 in L x 60.63 in W x 45.5 in H

• Complete factory charged, wired and run tested
• Scroll compressors with internal line break overload and high-pressure protection
• Convertible air flow
• TXV refrigerant metering device
• High pressure and low pressure/loss of charge protection standard on all models
• Solid core liquid line filter drier
• One-slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies
• Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream
• Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers
• Slide out indoor fan assembly for added service convenience
• One-piece top cover and one-piece base pan with drawn supply and return opening for superior water management
• Forkable base rails for easy handling and lifting, one-point electrical and gas connections
• Internally sloped slide out condensate pan conforms to ASHRAE 62 standards
• High performance belt drive motor with variable pitch pulleys and quick adjust belt system
• Permanently lubricated evaporator, condenser and gas heat inducer motors
• Condenser motors are internally protected, totally enclosed with shaft down design
• Two-stage gas valve, direct spark ignition and induced draft for efficiency and reliability
• Tubular heat exchanger for long life and induced draft for efficiency and reliability
• Solid-state furnace control with on board diagnostics
• 24 V control system with resettable circuit breakers
