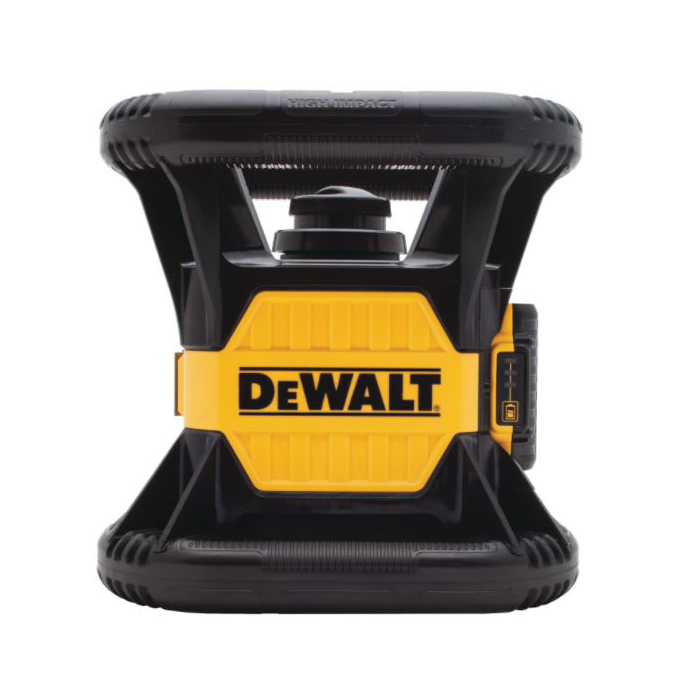

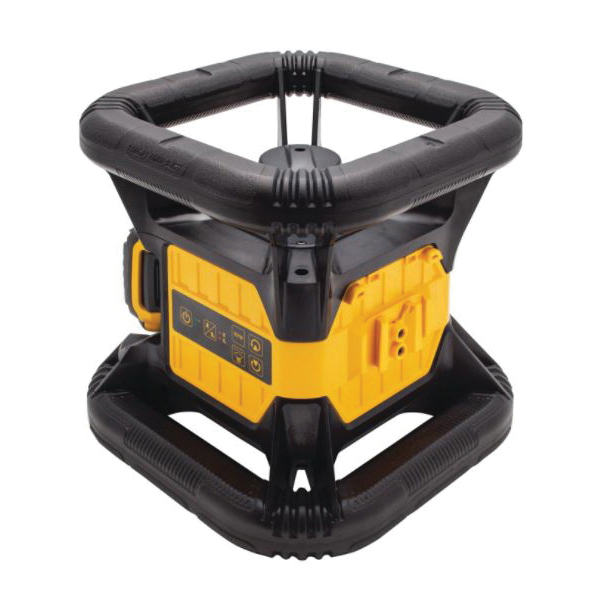

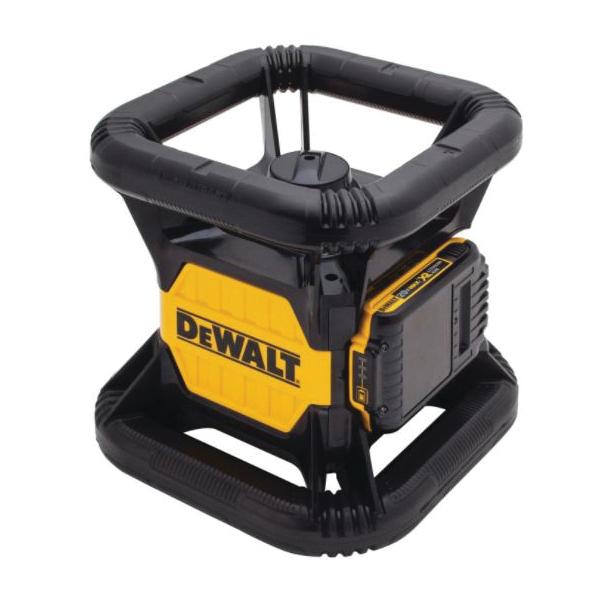

DeWALT® DW074LR 1069590

DeWALT® DW074LR Rotary Laser, 1500 ft Working Range with Detector, 150 ft Working Range without Detector, Red Laser

  • Manufacturer: Stanley Black & Decker
  • Brand Name: DeWALT®
  • Part Number: 1069590
  • MPN: DW074LR
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Sign In for Availability

This red rotary laser is built tough with the ability to withstand a 1 m drop. Use with the included detector and achieve a 1500 ft. Range making it a must have tool on your jobsite. It also runs on a widely accepted battery platform for added convenience.

DeWALT® Rotary Laser, 1500 ft Working Range with Detector, 150 ft Working Range without Detector, +/-1/8 in Accuracy, +/-5 deg Leveling, Horizontal Laser Projection, Automatic Self Leveling, 5/8-11 Thread, IP Rating: IP54, 20 V Lithium-Ion Battery, 1 Lines, 2 Beams, Plastic, Red Laser, 11-7/8 in L x 17-1/4 in W x 13 in H

Accuracy      :      +/-1/8 in
Dimensions      :      11-7/8 in L x 17-1/4 in W x 13 in H
IP Rating      :      IP54
Laser Color      :      Red
Laser Projection      :      Horizontal
Leveling Range      :      +/-5 deg
Leveling Type      :      Automatic Self
Material      :      Plastic
Number of Beams      :      2
Number of Lines      :      1
Power Source      :      20 V Lithium-Ion Battery
Thread Size      :      5/8-11
Working Range with Detector      :      1500 ft
Working Range without Detector      :      150 ft
  • IP65 rated
  • 1 m drop rating
  • Single axis slope mode
  • Vertical and horizontal alignments
  • Up plumb spot
  • Scan mode 15/45/90 deg
  • 5/8-11 removable tri-pod adapter
  • TSTAK® storage case
