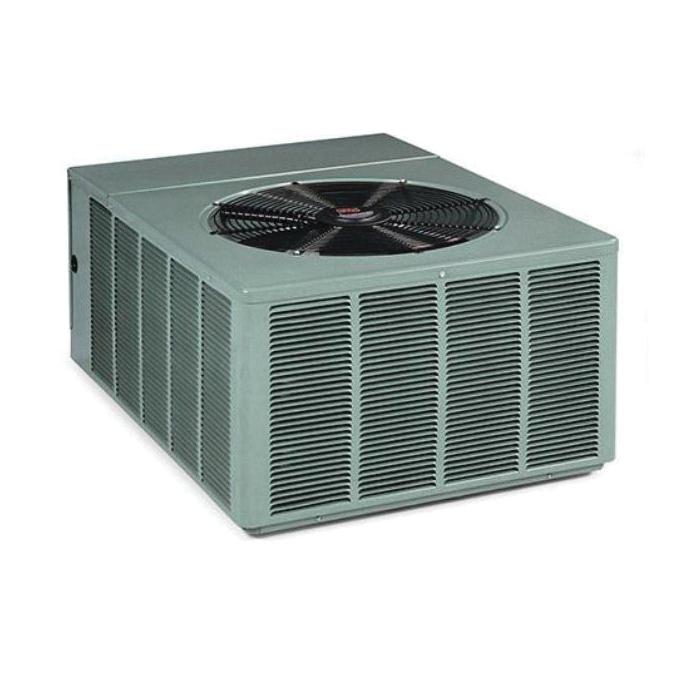

RUUD® RACA14030BJT000AA 1032717

RUUD® Packaged Air Conditioner, Series: Commercial Achiever®, Model: RACA14, 208/230 VAC, 21 A, 2.21 kw Wattage, 1/3 hp, 60 Hz, 1 ph Phase, Scroll Compressor, Downflow, 1000 cfm, 1 Speed, Panel Mounting, Direct Drive, Blower Motor, 3/4 in Connection, 1 x 24 x 24 in Filter, 47-1/2 in W x 35-15/16 in H x 52-7/16 in D

• All Models feature scroll compressors for maximum efficiency and quiet operation, 5 ton RGEA15 Models feature UltraTech™ scroll two-stage compressors with comfort Alert™ diagnostics, high/low pressure switches and hard start kits
• Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes
• One-piece top with a drip lip to help keep water off of the unit sides
• Supply and return air openings feature a 1 Inch H flange to prevent water migration into the ductwork
• Access panels have "weep holes" and channels to further help manage water run-off
• Easily accessible blower section complete with slide-out blower
• Externally mounted refrigerant connections are conveniently located for easy service diagnostics
• Micro channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils
• In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential
• Its easier to clean and has a more robust surface
• All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap
• Easily accessible control box
• Thermal expansion valve standard on all Models for superior superheat control, reliability and energy efficiency at all operating condition
• Solid core liquid line, filter drier standard on all Models
• Rugged base rails are included for improved installation and handling
• Molded compressor plug
• Complete factory charged, wired and run tested
• A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality
• 10 years limited warranty

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/RUUD_RACA14024BJT000AA_Catalog.pdf
