Rheem® RTEH010240MV 1037951
  1. pin-int

Rheem® RTEH010240MV 1037951

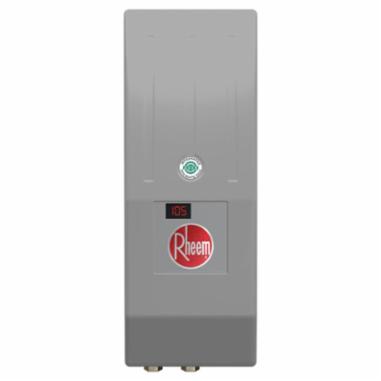

Rheem® RTEH010240MV Thermostatic Tankless Electric Water Heater With Integrated Mixing Valve, 9.5 kW, 1 ph, 120 V

  • Manufacturer: Rheem Manufacturing
  • Brand Name: Rheem®
  • Part Number: 1037951
  • MPN: RTEH010240MV
  • UPC: 020352758510
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Rheem® Thermostatic Tankless Electric Water Heater, 9.5 kW, 2.5 gpm Flow Rate, 0.96 Energy Factor, 40 A, 120 V, 1 ph Phase, Compression Connection, 3/8 in Connection, 35 to 150 psi, 8 AWG Wire, ABS, Nickel Chrome, Cool Gray, 105 deg F, 14-1/2 in H x 5-1/4 in W x 4 in D, Cartridge Element

Amperage Rating      :      40 A
Color      :      Cool Gray
Connection Size      :      3/8 in
Connection Type      :      Compression
Dimensions      :      14-1/2 in H x 5-1/4 in W x 4 in D
Element Type      :      Cartridge
Energy Factor      :      0.96
Finish      :      Nickel Chrome
Flow Rate      :      2.5 gpm
Material      :      ABS
Phase      :      1 ph
Power Rating      :      9.5 kW
Pressure Rating      :      35 to 150 psi
Temperature Rating      :      105 deg F
Voltage Rating      :      120 V
Wire Size      :      8 AWG
  • Digital LED display with accessible user interface communicates system status and heater operation feedback
  • Silent operation on all models except for RTEH012240T
  • Mounts in any orientation for a flexible installation
  • Compact size fits almost anywhere, suitable for ADA compliant facilities
  • Only one input line, hot or cold, needed for an easy installation
  • Designed to deliver hot water to a single pipe faucet, mixing valves or mixing faucets
  • Integral 3/8 in compression fittings, no soldering or sweat connections required
  • No T and P relief valve needed (check local codes), ready to go, right out of the box
  • Save water and time by installing unit at the point of use
  • Control system activates heater only on demand
  • High temperature limit switch enables safe operation
  • Active energy management with power modulation allows for thermostatic accuracy
