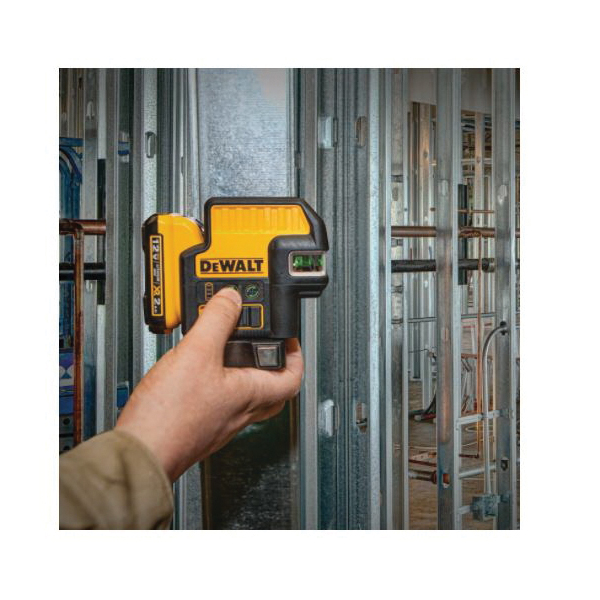

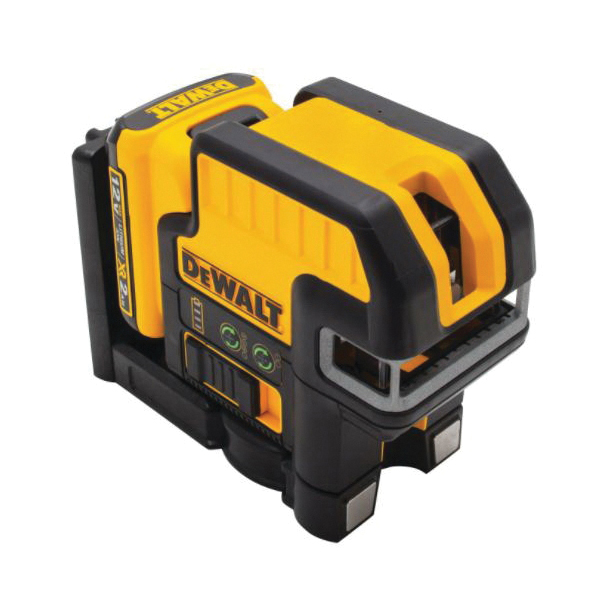

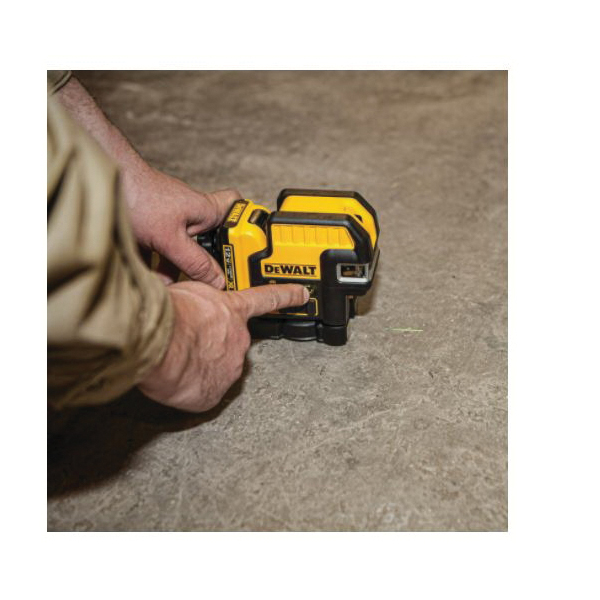

The DeWALT® 2 spot + cross line green laser offers many different uses on the job site. With spot and cross line capability, use this laser for multiple applications. With an IP65 debris/water resistance rating, 2 m drop protection and a highly visible green beam, this laser equips users to work in the toughest conditions.
DeWALT® Cross Line Green Laser, 12 V Battery, 100 to 165 ft Measuring, 4 Beams, 2 Dots, 2 Lines, +/-1/8 in Accuracy, 2 Laser Class, 510 to 530 nm, Green Laser, 17-13/32 in Overall Length, 13-1/2 in Overall Width, 7 in Overall Height, 1/4 in, 5/8 in Mounting Thread Diameter, Plastic Housing
| Accuracy | : | +/-1/8 in |
| Housing Material | : | Plastic |
| Laser Class | : | 2 |
| Laser Color | : | Green |
| Measuring Range | : | 100 to 165 ft |
| Mounting Thread Diameter | : | 1/4 in, 5/8 in |
| Number of Beams | : | 4 |
| Number of Dots | : | 2 |
| Number of Lines | : | 2 |
| Overall Height | : | 7 in |
| Overall Length | : | 17-13/32 in |
| Overall Width | : | 13-1/2 in |
| Power Source | : | 12 V Battery |
| Wavelength | : | 510 to 530 nm |

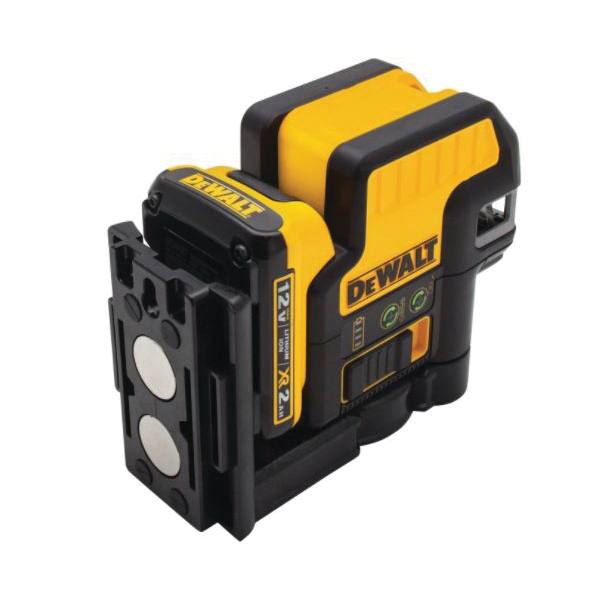

- Integrated magnetic bracket
- Locking pendulum
- Cross line (horizontal + vertical)
- Up/down spots
- Overmolded housing
- 2 m drop rating
- IP65 rated
- 1/4-20, 5/8-11 thread-mount
- Full time pulse mode
- 165 ft range with detector line
- 150 ft spot range
Instruction/Installation Manual
