DeWALT® 6306SD-PWR 1028141
  1. pin-int

DeWALT® 6306SD-PWR 1028141

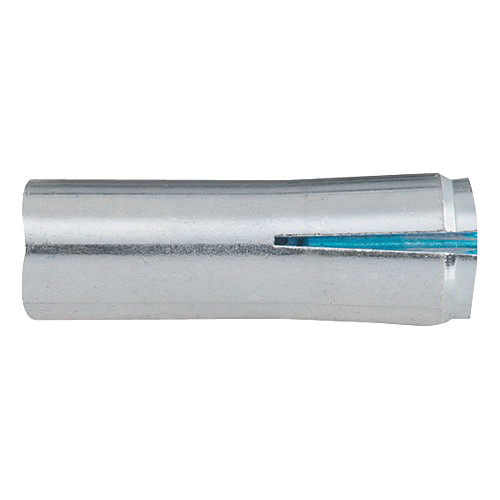

DeWALT® Smart DI™ 6306SD-PWR Internally Threaded Expansion Anchor, Imperial, 1/2 in Dia, 1-9/16 in L, 3/8-16 Thread

  • Manufacturer: Stanley Black & Decker_DEL_2024_MAR_19_11_56_58
  • Brand Name: DeWALT®
  • Part Number: 1028141
  • MPN: 6306SD-PWR
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The smart DI™ is an all-steel, machine bolt anchor available in carbon steel. It can be used in solid concrete, hard stone, and solid block base materials. The smart DI™ is specifically designed to be easier to fully set into the base material during installation as a benefit to the user.

DeWALT® Internally Threaded Expansion Anchor, System of Measurement: Imperial, 1/2 in Diameter, 1-9/16 in Length, 3/8-16 Thread, 5/8 in Thread Depth, 1/2 in Drill, 496 lb Tensile Strength, 1040 lb Shear Strength, Carbon Steel, Finish: Zinc-Plated

Diameter      :      1/2 in
Drill Size      :      1/2 in
Finish      :      Zinc-Plated
Length      :      1-9/16 in
Material      :      Carbon Steel
Shear Strength      :      1040 lb
System of Measurement      :      Imperial
Tensile Strength      :      496 lb
Thread Depth      :      5/8 in
Thread Size      :      3/8-16
