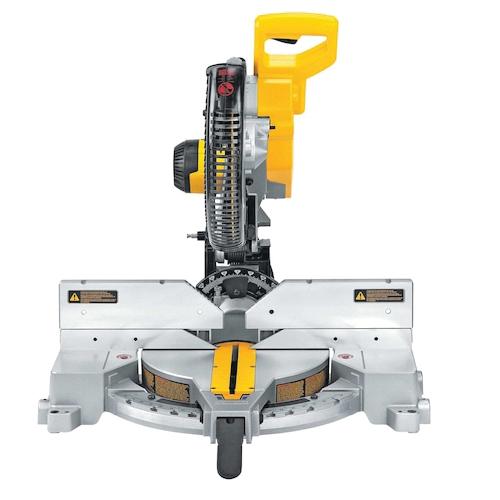

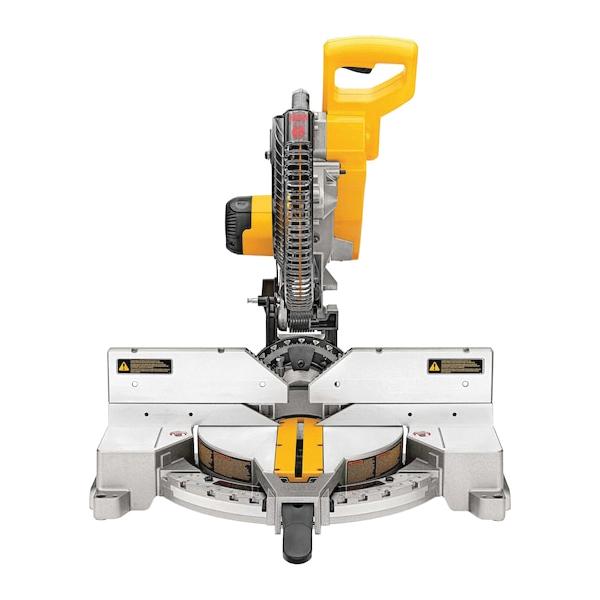

DeWALT® DW716 1029598

The DW716 12 in double-bevel compound miter saw has a 15 a motor for extended power and durability. Features stainless steel miter detent plate and cam miter lock that provide repeatable accuracy and durability with easy adjustments. Tall sliding fences support 6-5/8 in of nested crown and 6-1/2 in of base molding vertically. Lightweight design, head lock-down pin and built-in carry handle for portability.

DeWALT® Double-Bevel Compound Miter Saw, 12 in Blade Diameter, Carbide Blade, 0 to 48 deg Cutting Angle, 15 A, 3800 rpm, Cam-Lock Handle

• 15 A, 3800 rpm motor delivers extended power and durability
• Adjustable stainless steel miter detent plate with 11-positive stops improves productivity and ensures cutting accuracy
• Precise miter system and machined-base fence support optimize cutting accuracy
• Tall sliding fences support crown molding up to 6-5/8 in nested and base molding up to 6-1/2 in vertically against the fence while easily sliding out of the way for bevel cuts
• Innovative gearbox and belt-drive design increases vertical cutting capacity

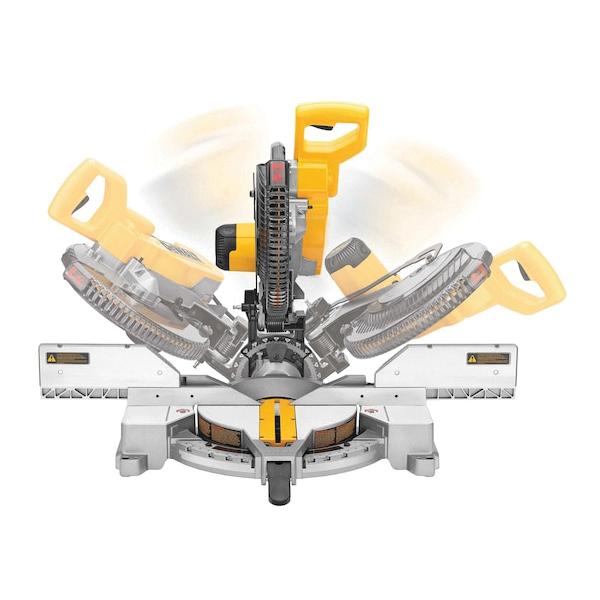

• Double-bevel design allows saw to bevel left and right 0 to 48 deg with positive stops at 0 deg, 33.9 deg, 45 deg and 48 deg both left and right allowing user to flip the saw not the material
• Exclusive back fence design cuts dimensional lumber 2 x 10 in at 90 deg and 2 x 8 in at 45 deg
• 0 to 50 deg left and right miter capacity for greater versatility
• Lightweight (44 lb), head lock-down pin and built-in carrying handle for increased portability
• Cam lock miter handle with detent override deliver quick and accurate miter angles

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/DeWALT_DW716_Instruction_Installation_Manual.pdf
