Rheem® SP11231 1017942
  1. pin-int

Rheem® SP11231 1017942

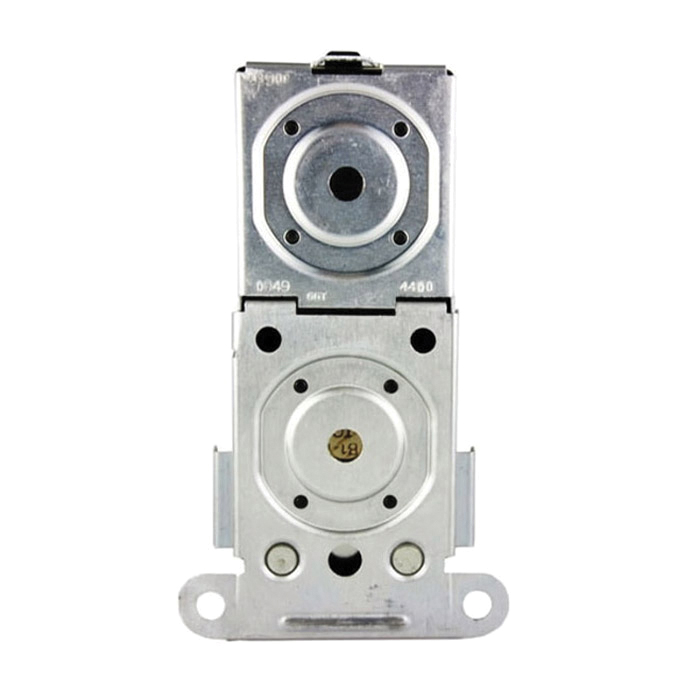

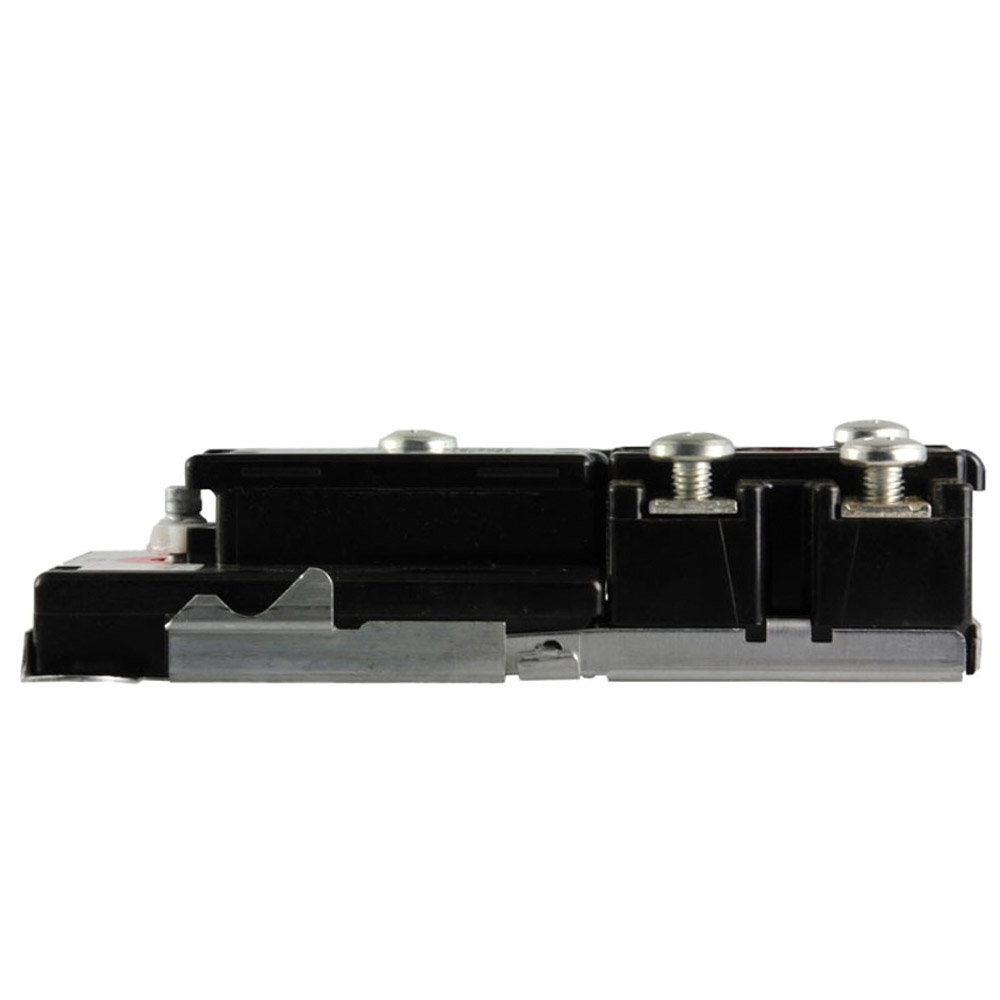

Rheem® 59T/66T SP11231 Electric Thermostat, DPST, SPST Switch

  • Manufacturer: Rheem Manufacturing
  • Brand Name: Rheem®
  • Part Number: 1017942
  • MPN: SP11231
  • UPC: 020352310817
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

Rheem® Electric Thermostat, Series: 59T/66T, DPST, SPST Switch, Differential Temperature: 5 to 20 deg F, 120 to 170 deg F, Accuracy: +/-10 deg F, Suitable For Use With: 6E744, 6E745, 6E746 and 6E747 Electric Water Heaters

Accuracy      :      +/-10 deg F
Differential Temperature      :      5 to 20 deg F
Series      :      59T/66T
Suitable For Use With      :      6E744, 6E745, 6E746 and 6E747 Electric Water Heaters
Switch Type      :      DPST, SPST
Temperature Rating      :      120 to 170 deg F
  • A thermostat controls the power to the heating elements
  • If the water in the tank is below the desired temperature, the thermostat will turn on the heating element
  • This thermostat also includes a manual reset high limit
