DeWALT® 6304SD-PWR 1008226
DeWALT® Smart DI™ 6304SD-PWR Expansion Anchor, Imperial, 1/4 in Dia, 1 in L, 1/4-20 Thread, Carbon Steel, Zinc-Plated
- Manufacturer: Stanley Black & Decker
- Brand Name: DeWALT®
- Part Number: 1008226
- MPN: 6304SD-PWR
- UPC: 075352828893
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:

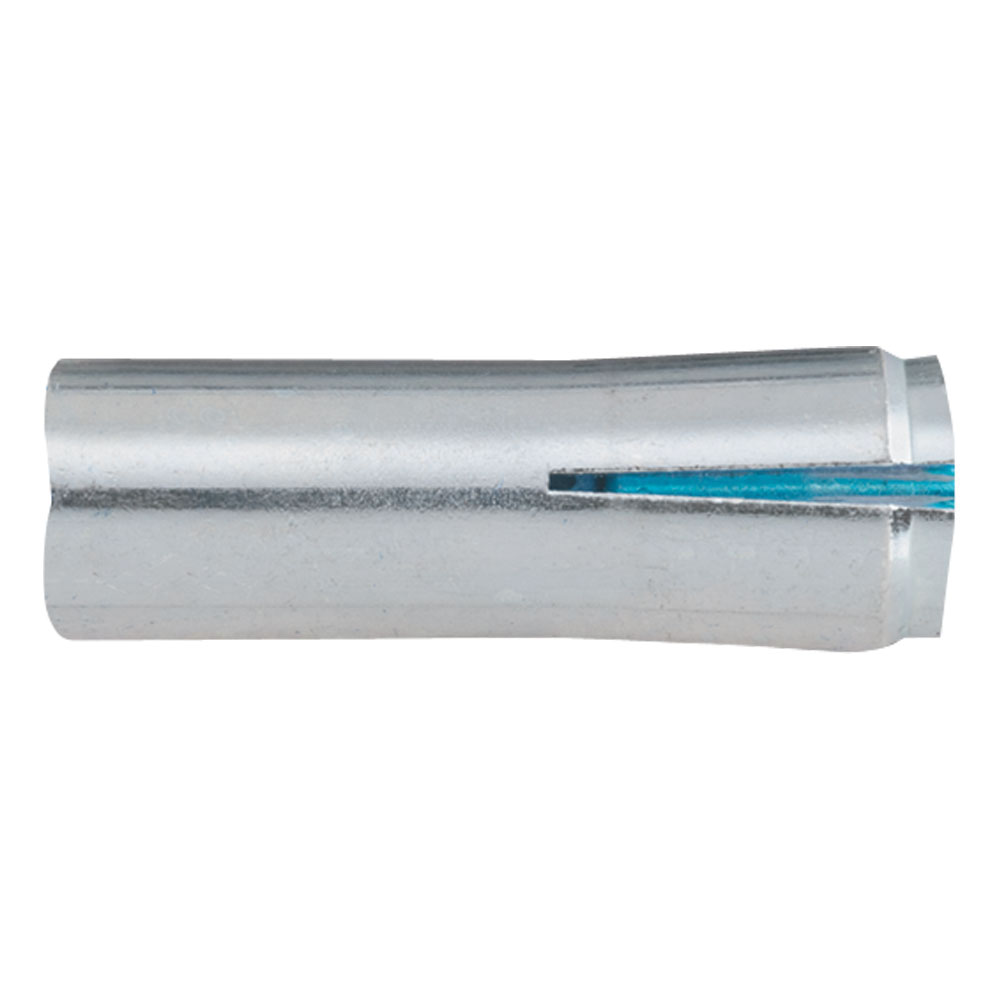

The Smart DI™ is an all steel, machine bolt anchor available in carbon steel. It can be used in solid concrete, hard stone, and solid block base materials. The Smart DI™ is specifically designed to be easier to fully set during installation as a benefit to the user.
DeWALT® Expansion Anchor, System of Measurement: Imperial, 1/4 in Diameter, 1 in Length, 1/4-20 Thread, Internal Thread, 1 in Minimum Embedment, 3/8 in Drill, 480 lb Tensile Strength, 655 lb Shear Strength, Carbon Steel, Finish: Zinc-Plated, 1008 Grade, Applicable Materials: Block, Concrete, Stone
| Applicable Materials | : | Block, Concrete, Stone |
| Diameter | : | 1/4 in |
| Drill Size | : | 3/8 in |
| Finish | : | Zinc-Plated |
| Grade | : | 1008 |
| Length | : | 1 in |
| Material | : | Carbon Steel |
| Minimum Embedment | : | 1 in |
| Shear Strength | : | 655 lb |
| System of Measurement | : | Imperial |
| Tensile Strength | : | 480 lb |
| Thread Size | : | 1/4-20 |
| Thread Type | : | Internal |
- Installs with reduced effort compared to traditional drop in style anchors
- Can be installed using the manual setting tool or Smart DI system with a hammer drill

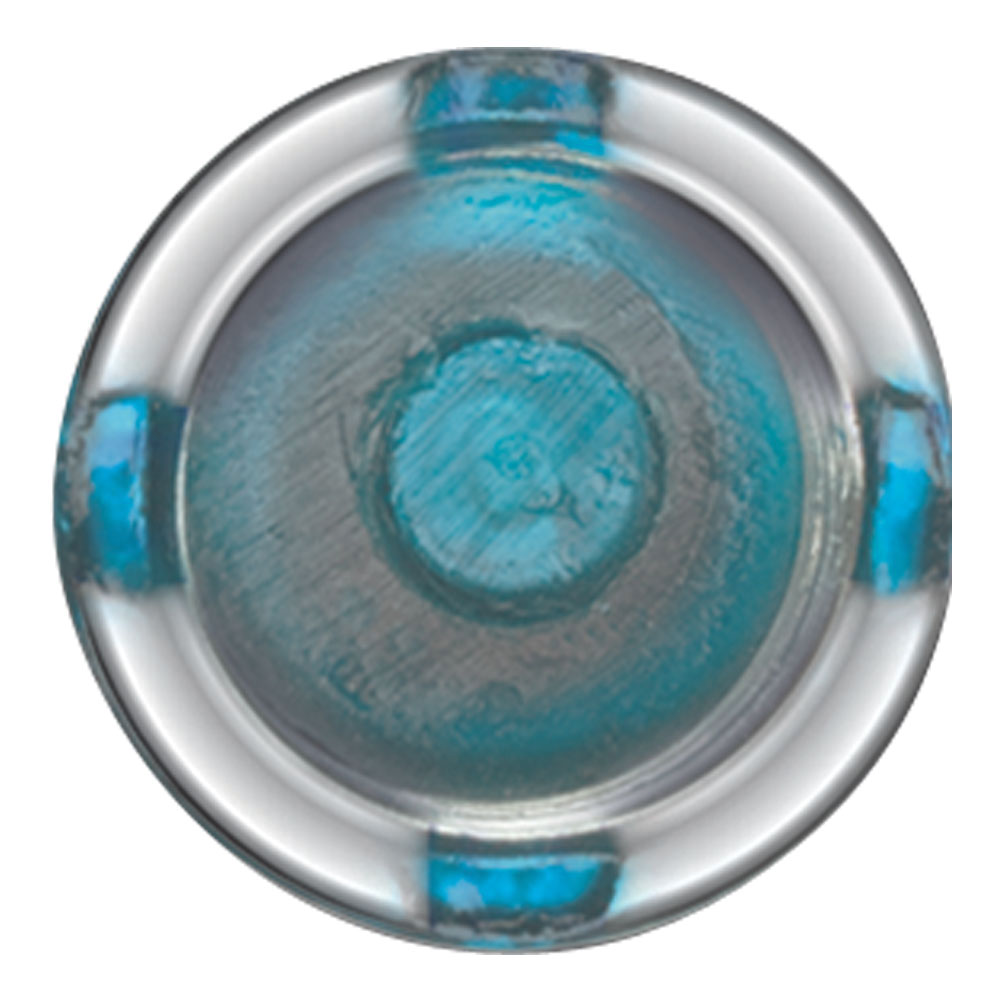

- Setting indicator makes identification of properly set anchors easy (when installed using the smart tool and smart bit)
- Internally threaded anchor for easy bolt removability and service work
- Anchor can be installed through standard fixture holes
Specification Sheet
