Rheem® 60-102405-01 1099649
  1. pin-int

Rheem® 60-102405-01 1099649

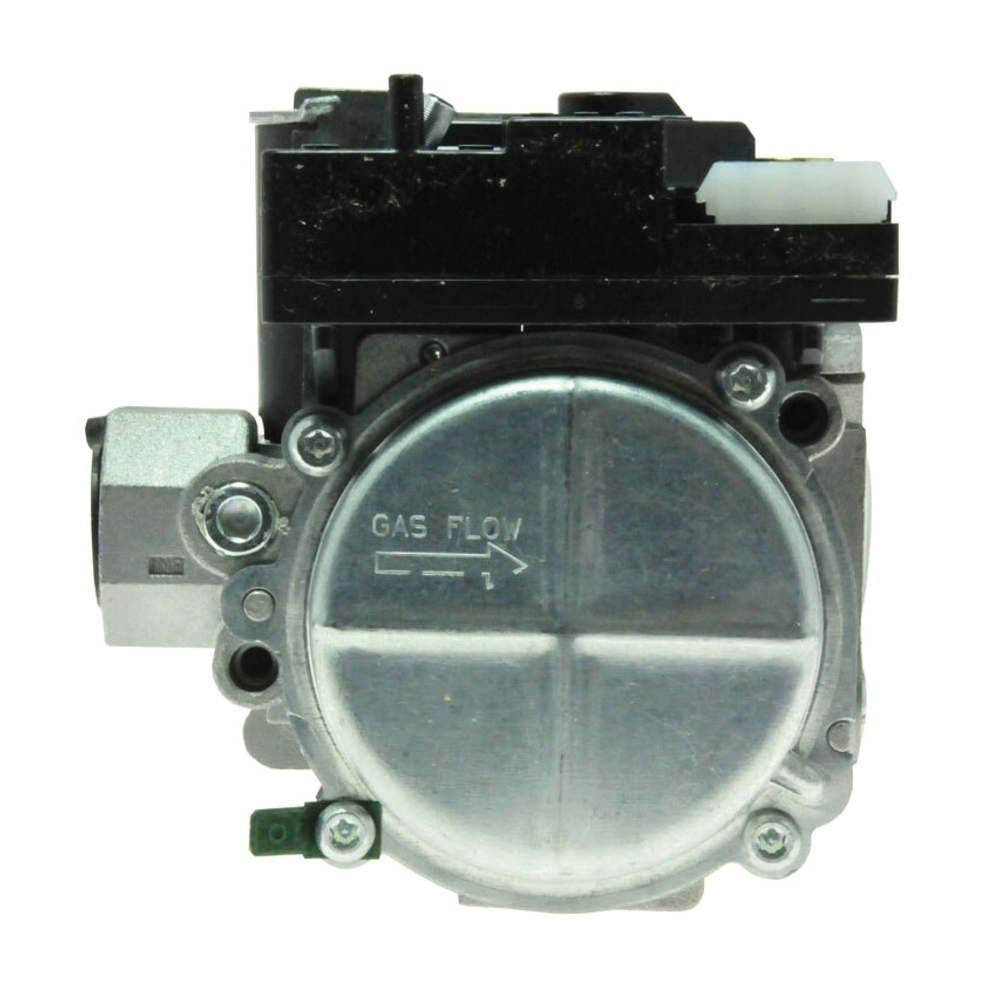

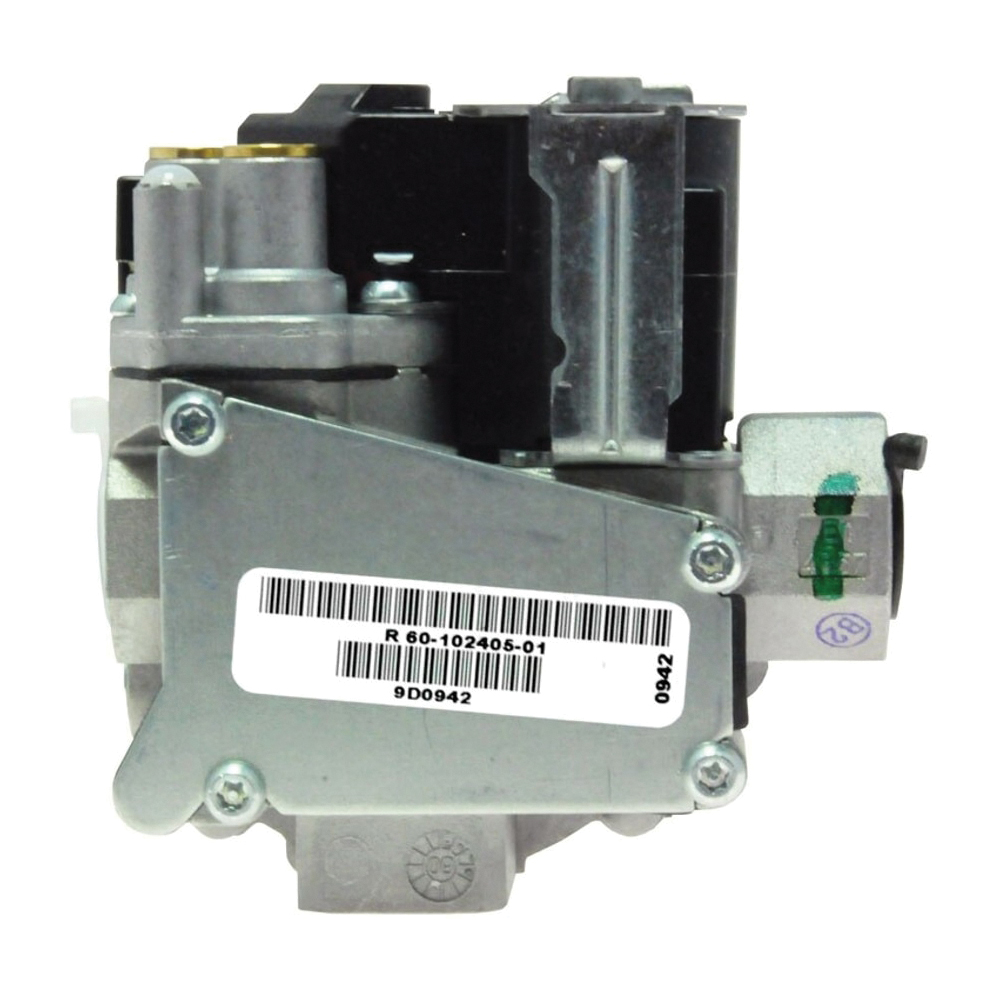

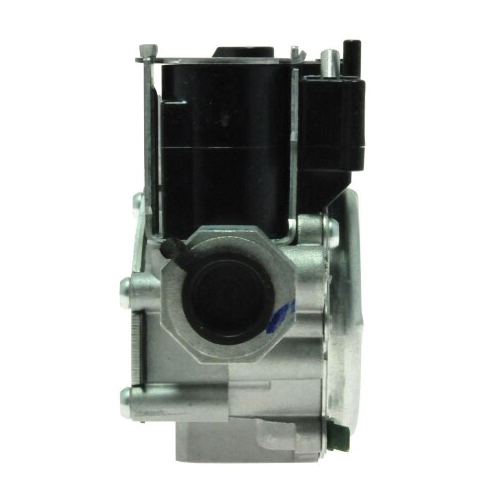

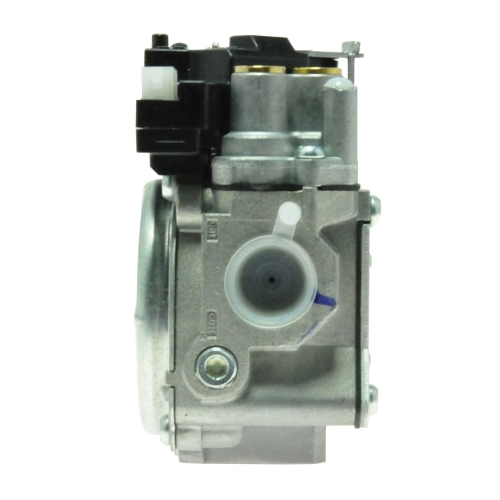

Rheem® 36G Series 60-102405-01 2-Stage Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 140000 Btu/hr Nominal

  • Manufacturer: Rheem Manufacturing
  • Brand Name: Rheem®
  • Part Number: 1099649
  • MPN: 60-102405-01
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Availability

The 36G is a combination gas control valve designed for use with non-piloted intermittent ignition systems. The control is designed to meet todays maximum capacity, smaller size and high efficiency gas systems.

Rheem® 2-Stage Gas Valve, 36G Series, Inlet Size: 1/2 in, Outlet Size: 1/2 in, NPT End, 140000 Btu/hr Capacity, Gas Type: Natural, Direct Spark, Hot Surface Ignition, 4 in OAL, 2-7/16 in OAW, 4-1/4 in OAH

End Type      :      NPT
Gas Type      :      Natural
Ignition Type      :      Direct Spark, Hot Surface
Inlet Size      :      1/2 in
Nominal Capacity      :      140000 Btu/hr
Outlet Size      :      1/2 in
Overall Height      :      4-1/4 in
Overall Length      :      4 in
Overall Width      :      2-7/16 in
Series      :      36G Series
  • Inlet and outlet screens
  • Quiet redundant
  • Built-in pressure tap
  • 0.25 in quick-connect terminals
