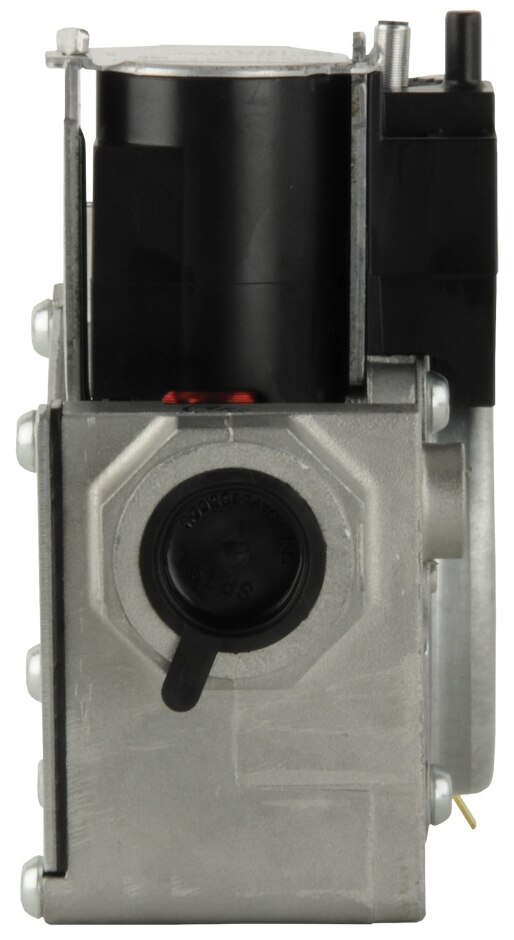

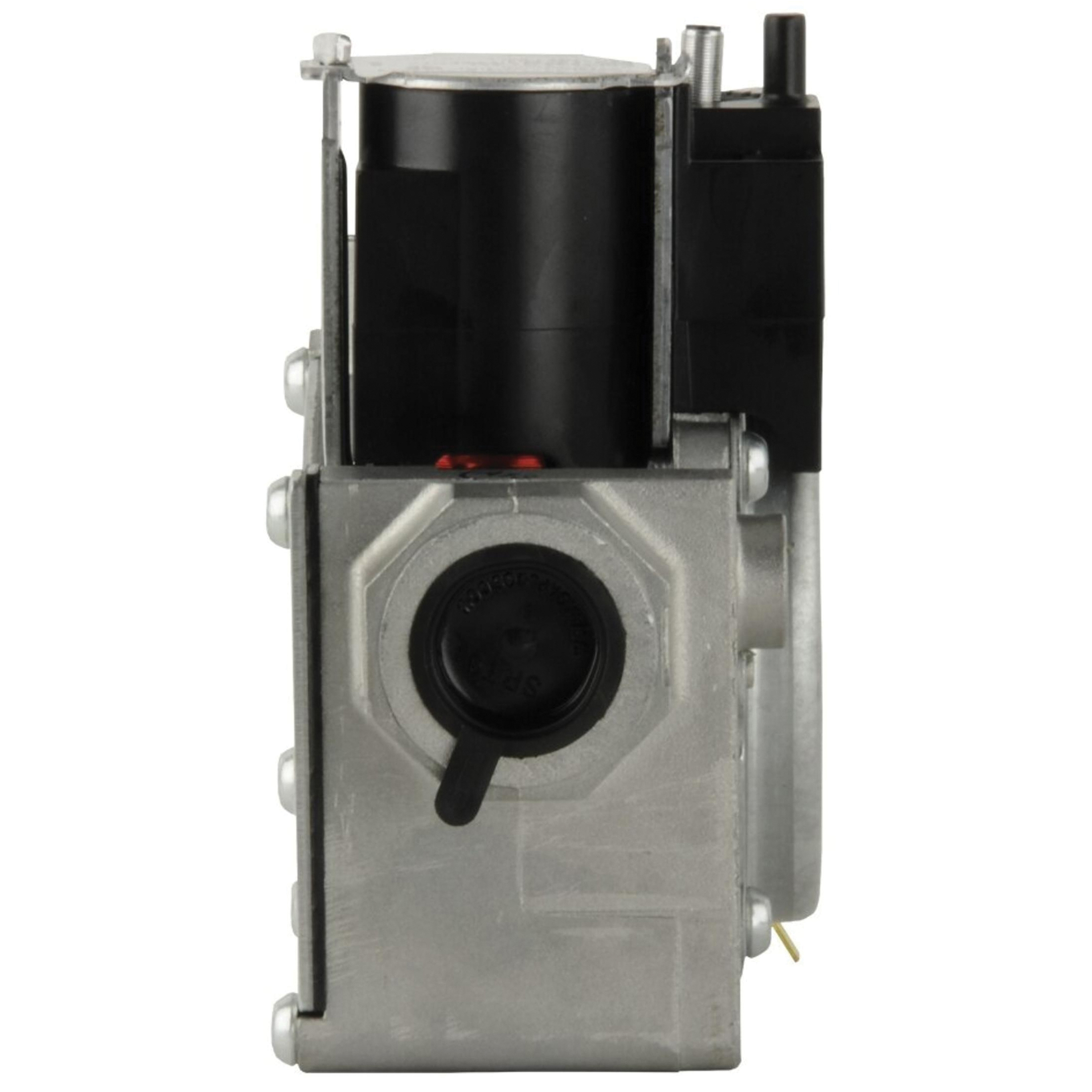

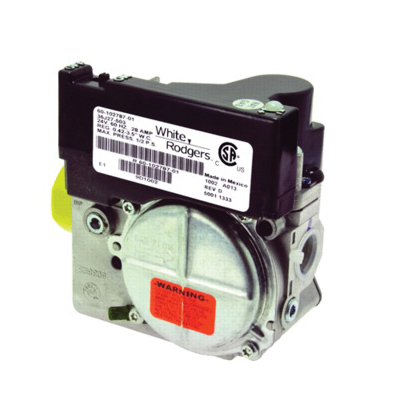

Electronic ignition gas valve. The versatile 36J series combination gas valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI).
RUUD® Gas Valve, Series 36J Series, Inlet Size: 1/2 in, Outlet Size: 1/2 in, Gas Type: Natural Gas, Direct Spark Ignition, 4-3/4 in Overall Length, 2-3/8 in W Overall, 4-1/4 in Overall Height
| Connection Type | : | NPT |
| Dimensions | : | 4-3/4 in L x 2-3/8 in W x 4-1/4 in H |
| Fuel Type | : | Natural Gas |
| Gas Type | : | Natural Gas |
| Ignition Type | : | Direct Spark |
| Inlet Size | : | 1/2 in |
| Nominal Capacity | : | 140000 Btu/hr at 1 in WC Pressure Drop |
| Nominal Size | : | 1/2 in |
| Number of Stages | : | 1 |
| Outlet Size | : | 1/2 in |
| Overall Height | : | 4-1/4 in |
| Overall Length | : | 4-3/4 in |
| Overall Width | : | 2-3/8 in |
| Series | : | 36J Series |
- Convertible natural or LP gas
- Adjustable regulator
- Inlet and outlet screens
- Electric on-off switch
- Pressure taps
