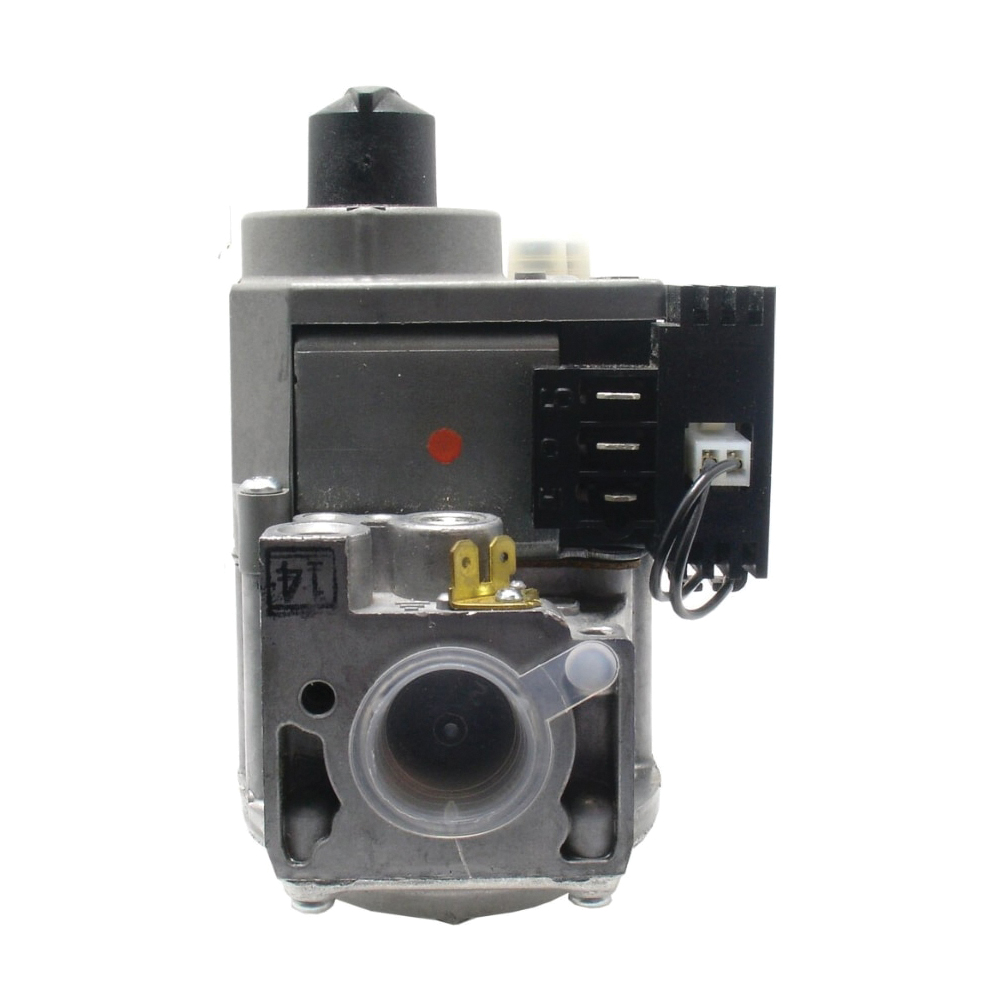

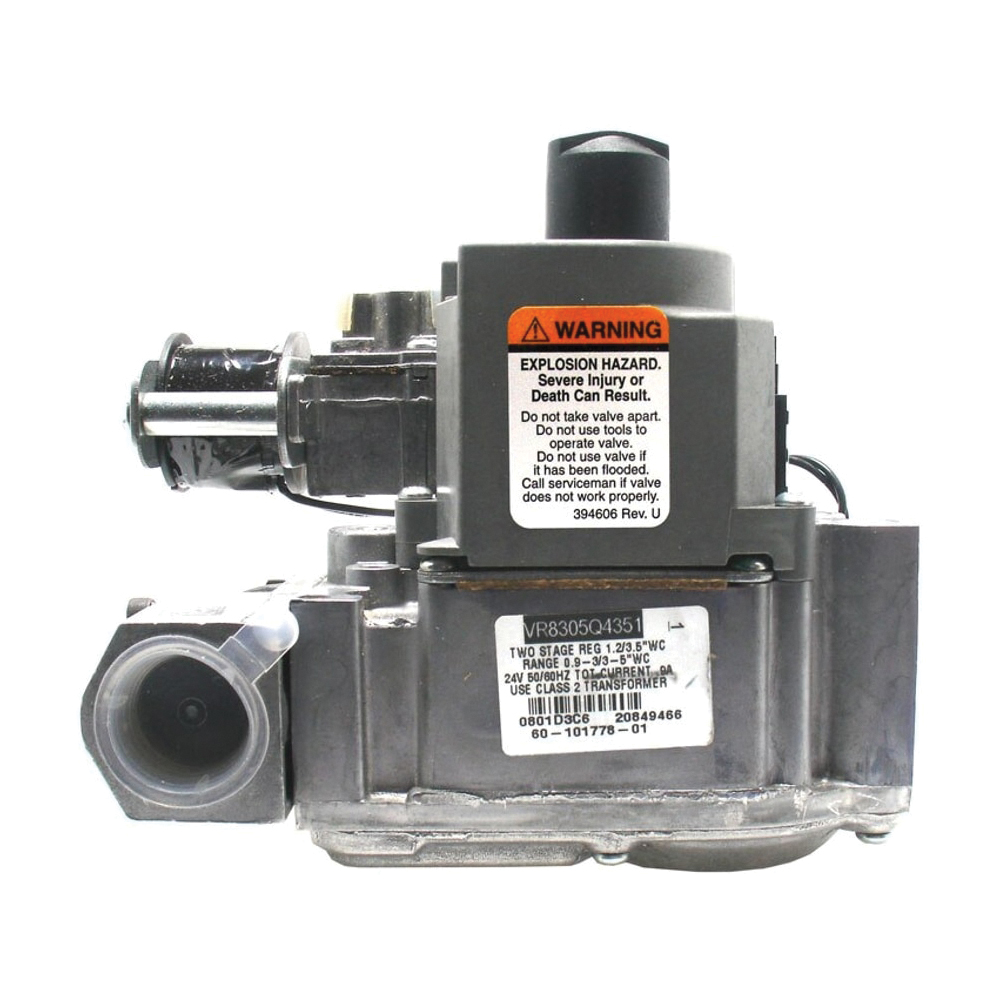

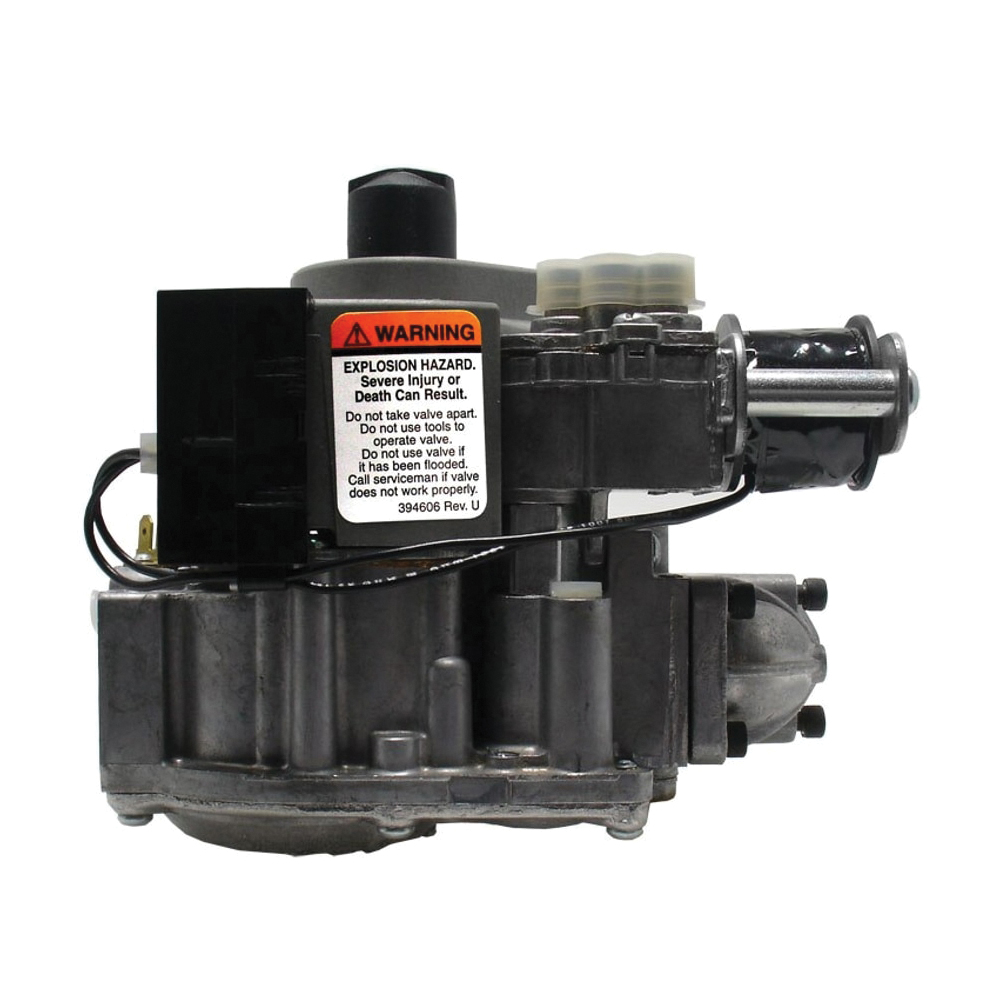

Rheem® 2-Stage Gas Valve, VR8305 Series, Inlet Size: 3/4 in, Outlet Size: 3/4 in, NPT End, 270000 Btu/hr Capacity, Gas Type: Natural, Direct Ignition Ignition, 5-7/16 in OAL, 3-1/2 in OAW, 5-1/8 in OAH
| End Type | : | NPT |
| Gas Type | : | Natural |
| Ignition Type | : | Direct Ignition |
| Inlet Size | : | 3/4 in |
| Nominal Capacity | : | 270000 Btu/hr |
| Outlet Size | : | 3/4 in |
| Overall Height | : | 5-1/8 in |
| Overall Length | : | 5-7/16 in |
| Overall Width | : | 3-1/2 in |
| Series | : | VR8305 Series |
- Manual valve, two automatic operators and pressure regulator
- Two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat and closes when call for heat ends
- Meet codes requiring dual safety shutoff
- On-Off lighting sequence
- All adjustments, wiring and pilot outlet are accessible from top of control
